Securitron PB3 1" By 3/4" Illuminated "Push To Exit" Button

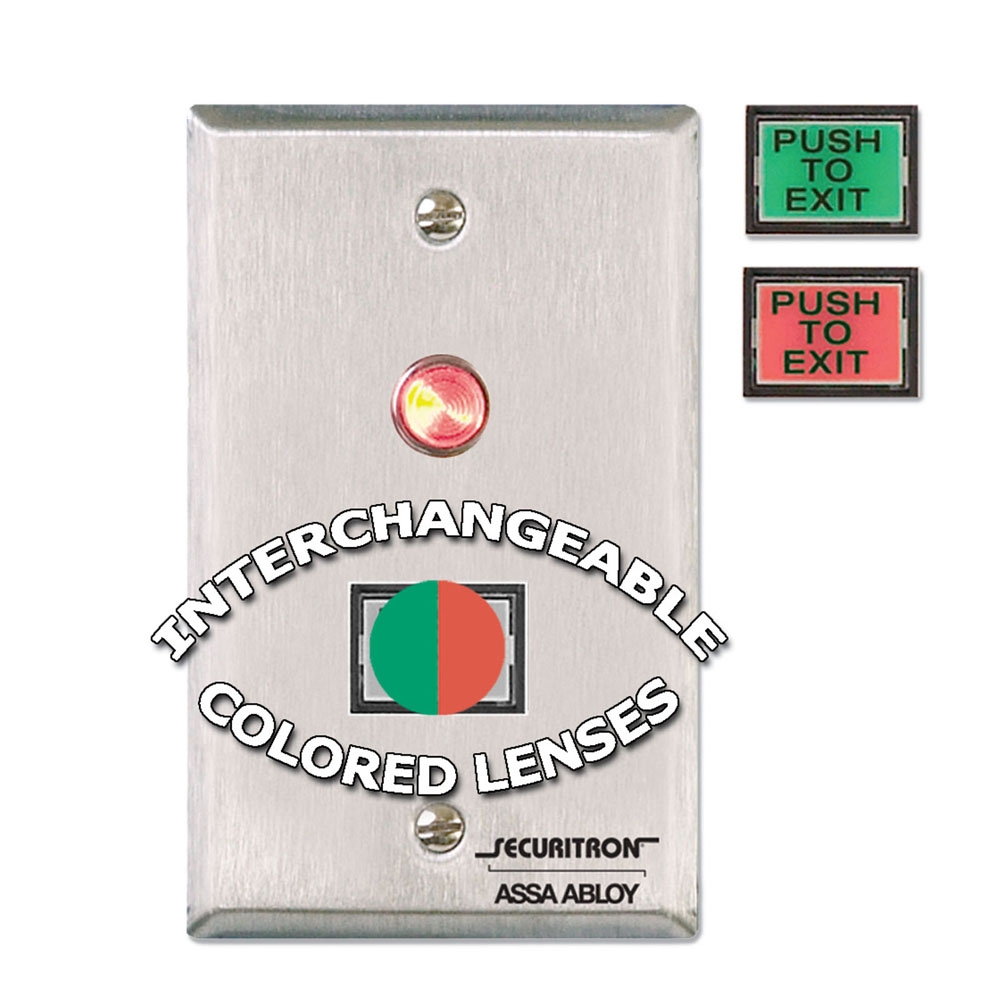

The Securitron PB3 is a compact and illuminated "Push to Exit" button designed for use in access control systems. Here are the key features and specifications:

• Size and Design: The PB3 button measures 1" x 3/4" and is mounted on a stainless steel single-gang plate, making it ideal for installations in narrow spaces.
• Illumination: It includes interchangeable green and red lenses, allowing for customization based on your requirements. The button is illuminated with a bi-color LED that can be powered by 12VDC or 24VDC.
• Momentary Action: The button operates with momentary contact and comes with Double Pole Single Throw (DPST) contacts, which can be field-converted to Double Pole Double Throw (DPDT) if needed.
• Electrical Specifications: The button has a contact rating of 3 amps, with a current draw of 29mA at 12VDC and 40mA at 24VDC.
• Mounting: Designed for single-gang mounting, the PB3 is suitable for a variety of access control applications where secure and reliable exit control is required.

This push button is particularly useful in environments that require clear and reliable egress solutions, such as commercial buildings and institutions.
