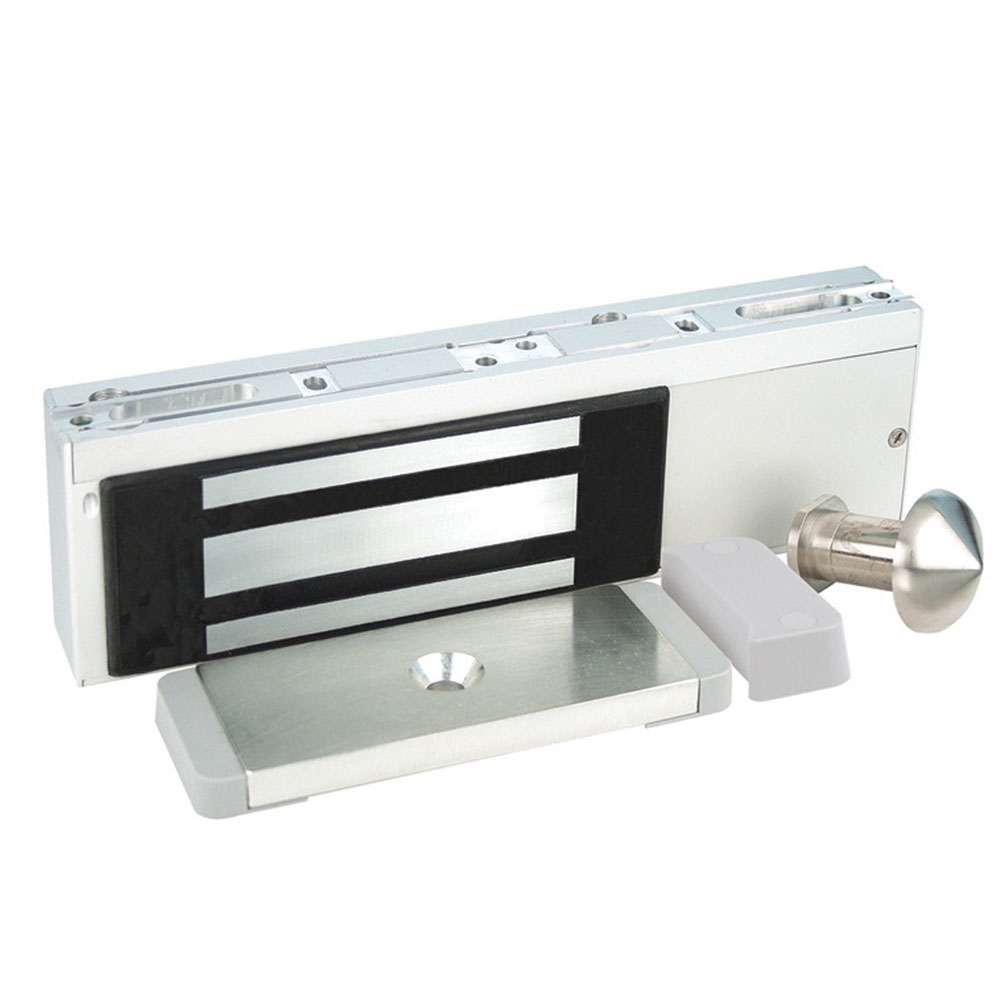

Securitron IMXDA Integrated Motion Exit Delay System

SKU # SO/IMXDA

Read Review(s) | Log in to Review

The Securitron IMXDA Integrated Motion Exit Delay System is an Integrated Motion Exit Delay System. The Securitron® iMXDa Delayed Egress Magnalock® is a Configurable delayed egress Magnalock with 1,200 lbs holding force. Integrated movement exit delay with all-in-one Magnalock. Prevent losses at emergency exits with Securitron iMXDa. An attempted exit initiates an alarm and intiates a brief delay timer before the lock releases, giving personnel time to respond before an exit occurs. Protect memory care wards, hospitals, dormitories, airports, child care facilities and retail or warehouse environments. Used on out-swing doors, installation requires no alteration or replacement of existing fire-rated or non-fire-rated latching hardware.

Features include:

  • Automatic dual-voltage —no field adjustment required
  • Bracket mounting provides the easiest install for out-swing doors
  • Size optimized for use with door closers
  • Patented BondSTAT lock bond sensor
  • Instant release circuit —no residual magnetism
  • Internal wire access chamber
  • Easily visible LEDs indicate status on secure side of door
  • Advanced intelligent microprocessors provide alarm options and trainable door movement detection to minimize false alarms
  • Permits free egress in emergency situations
  • Fully integrated delay and detection features for fast installation of delayed egress system
  • Easily adjustable door movement detection from 1/8" [3.2 mm] to 1" [25.4 mm]
  • External alarm relay isolated dry contact (1A at 24 VDC)
  • External reset
  • Keyswitch reset
  • Configurable settings include: − Nuisance alarm times – 0 to 3 seconds − Irrevocable delay times –15 or 30 seconds − External bypass delay times – 0, 5, 10, or 15 seconds − Post alarm reminder − Bypass expiration alarm − Manual relock or delayed automatic relock (BOCA)
  • Required sign included
  • Ultra-secure collapsing blind nuts mount to door frame for strength and reliability
  • Rust resistant – all ferrous metal surfaces plated for durability
US$898.32

Description:

Description:

Securitron IMXDA Integrated Motion Exit Delay System

The Securitron IMXDA Integrated Motion Exit Delay System is an advanced security solution designed to enhance the safety and security of emergency exits by delaying unauthorized egress. This system integrates a Magnalock with an intelligent microprocessor that monitors door movement and triggers alarms.

Key Features:

  • Holding Force: The system provides a strong 1,200 lbs holding force, making it highly reliable for securing doors.
  • Compact Design: With a shorter overall length of 12.5 inches, it is designed to fit most doors equipped with closers, ensuring versatility in installation.
  • Dual Voltage: The system supports automatic dual voltage (12/24 VDC), eliminating the need for field adjustments.
  • Enhanced Security: It includes a BondSTAT magnetic bond sensor (MBS) and an integrated door position switch (DPS) to monitor door status and ensure security.
  • Customizable Settings: Users can select nuisance alarm times (0-3 seconds), delay times (15 or 30 seconds), and other alarm features to tailor the system to specific needs.
  • Application: Ideal for use in environments like hospitals, dormitories, retail spaces, and memory care facilities where preventing unauthorized exits is crucial.

This system is designed to prevent accidental exits while giving personnel time to respond to alarms, making it particularly useful in high-security or sensitive areas.
