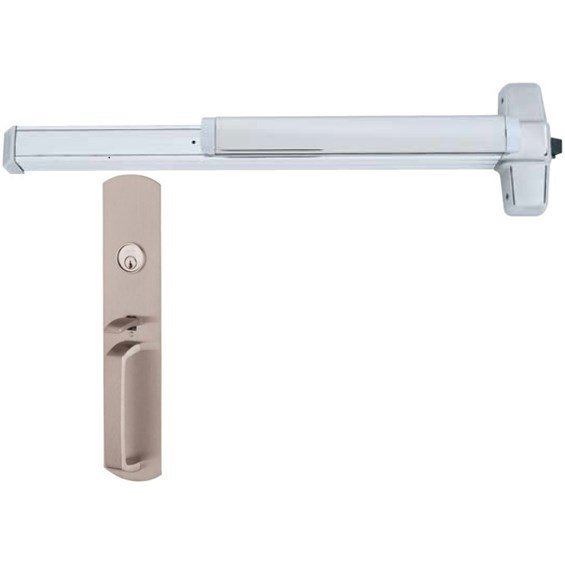

Von Duprin 99NL Series Panic Exit Device with Cylinder
Exit devices are a critical part of the Fire and Life Safety egress system and will provide safe and reliable service when properly applied and maintained. Von Duprin designs and manufactures exit devices in accordance to ISO 9001 Quality Management System and meets or exceed accepted U.S. domestic and International standards. All 98 and 99 series exit devices are UL listed for Panic Hardware or Fire Hardware, and are certified to ANSI A156.3, 2001, Grade 1.
The Von Duprin 98 & 99 Rim exit device for all types of single and double doors with mullion, UL listed for panic exit hardware. Devices are ANSI A156.3 - 2001 Grade 1. The 98 has a smooth mechanism case and the 99 has a grooved case.
Features and Benefits:
- Rim exit device with 990NL night latch trim, key retracts latch.
- Covers stock hollow metal doors with 86 or 161 cutouts on single doors.
- ANSI Function - 03.
- Strike - 299 - Dull Black.
- For all types of single and double doors with mullion.
- For doors 1-3/4" or 2-1/4" thick.
- Non-handed.
- Dogging Feature - Hex key dogging standard.
- Available in Sprayed Aluminum (SP28), Sprayed Dark Bronze (SP313) & Satin Chrome (26D) finish.
Specification Data:
- ANSI A156.3, 2001, Grade 1.
- UL listed for Panic Exit Hardware.
- 3 ft. device fit doors 28" to 36". 4 ft device fits door 34" to 48".
- Latch Bolt - Deadlocking, 3/4" throw.
- Escutcheon Plate Size - 3" x 14-13/16" x 3/32".
- Pull Center to Center - 5-1/2".
- Rim cylinder not included.
- Projection - 2".
** All Von Duprin Exit Device Trims are sold Less Cylinder. For matching cylinders see "Companion Items" above.**
Special Order Information: For pricing on any finish or non-standard option of the Von Duprin 99 Series Exit Devices not found on this page please contact Taylor Security direct via e-mail (sales@taylorsecurity.com) or call us toll-free at 1-800-676-7670.
