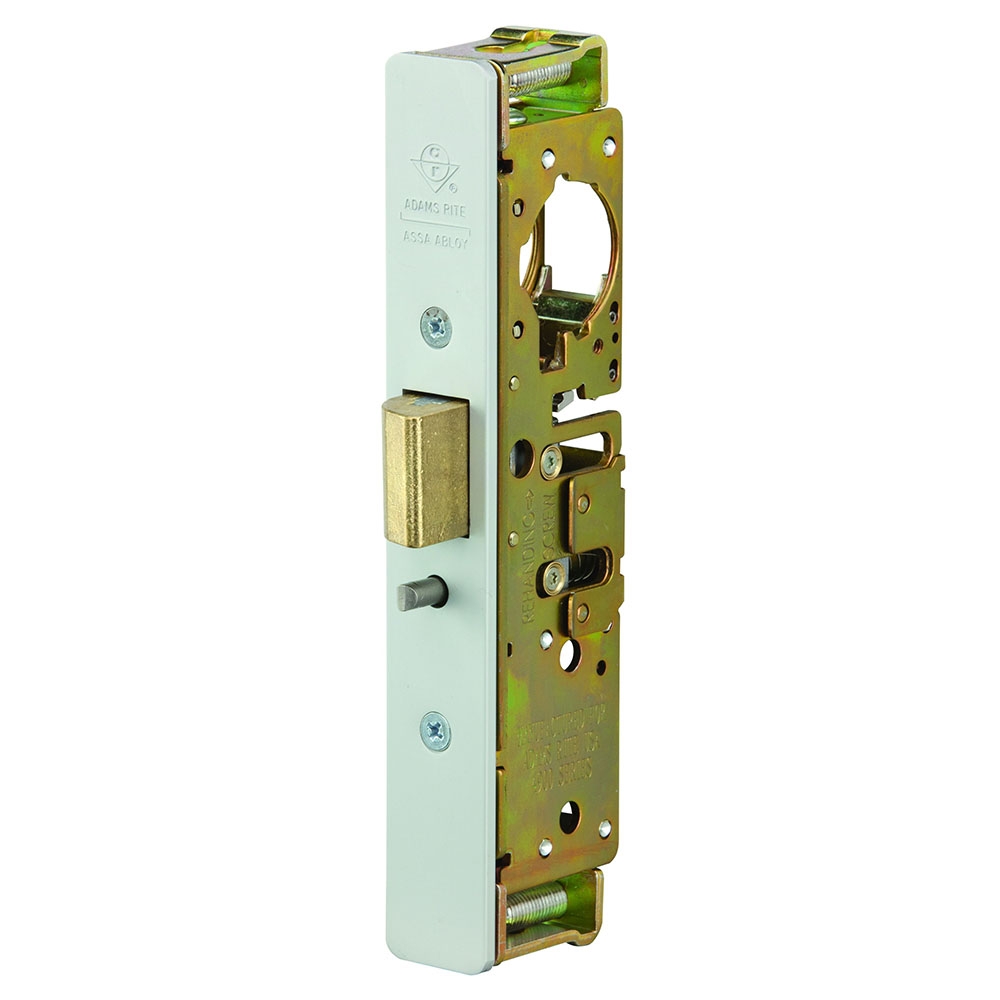

Adams Rite Heavy Duty Deadlatches

SKU # AD4900

Description: 4900 Heavy Duty Deadlatch provides flexible traffic control and easy installation.

Function: Flexibility of traffic control and installation is offered by 4900 Heavy Duty Deadlatches. A reverse turn of the key while bolt is held retracted retains the bolt, to allow two-way traffic for applications which require free entrance at certain times and exit-only at other times. Interchangeable, without stile modification, with any MS1850A or MS1850S deadbolt of same backset and faceplate shape. Also retrofits to existing 4500 and 4700 Deadlatch preparations. 1-3/4” minimum door thickness required.

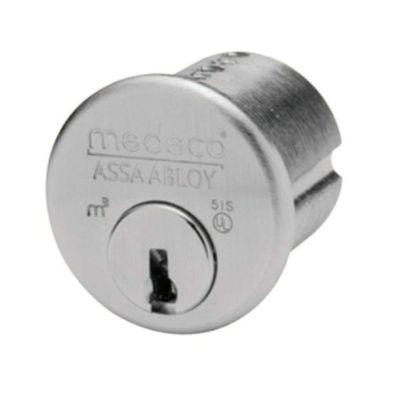

Operation: Turn key or operate handle or paddle to retract spring-loaded latch bolt. To hold bolt retracted, push it in and secure by reverse turn of key. Uses any standard 1-5/32” mortise cylinder with MS® dimensioned cam.

Specifications:

Bolt Holdback: While bolt is held fully retracted, a reverse turn of the key retains the bolt, allowing the door to be free swinging.

Backset: 31/32” or 1-1/8”

Case: Measures 7/8” x 5-13/16” x depth. Depth varies by backset. Steel with corrosion-resistant plating. Screw-fastened tube spacer brackets allow for cleaner removal when tab mounting.

Latchbolt: 5/8” x 1” x 5/8” throw. Solid brass. Handing is easily reversible using only a screwdriver.

Auxiliary Latchpin: Stainless steel. Deadlocks latch bolt to prevent “loiding” or case-knife entry.

Faceplates: Measures 1” x 6-7/8”. Both flat and radius faceplates are supplied. Flat faceplates can also be adjusted in the field for right or left beveled edge doors.

Strikes: Sold separately: 4902 for flat jamb where door closes flush or nearly flush. 4901 for retrofit installations.

US$83.40
