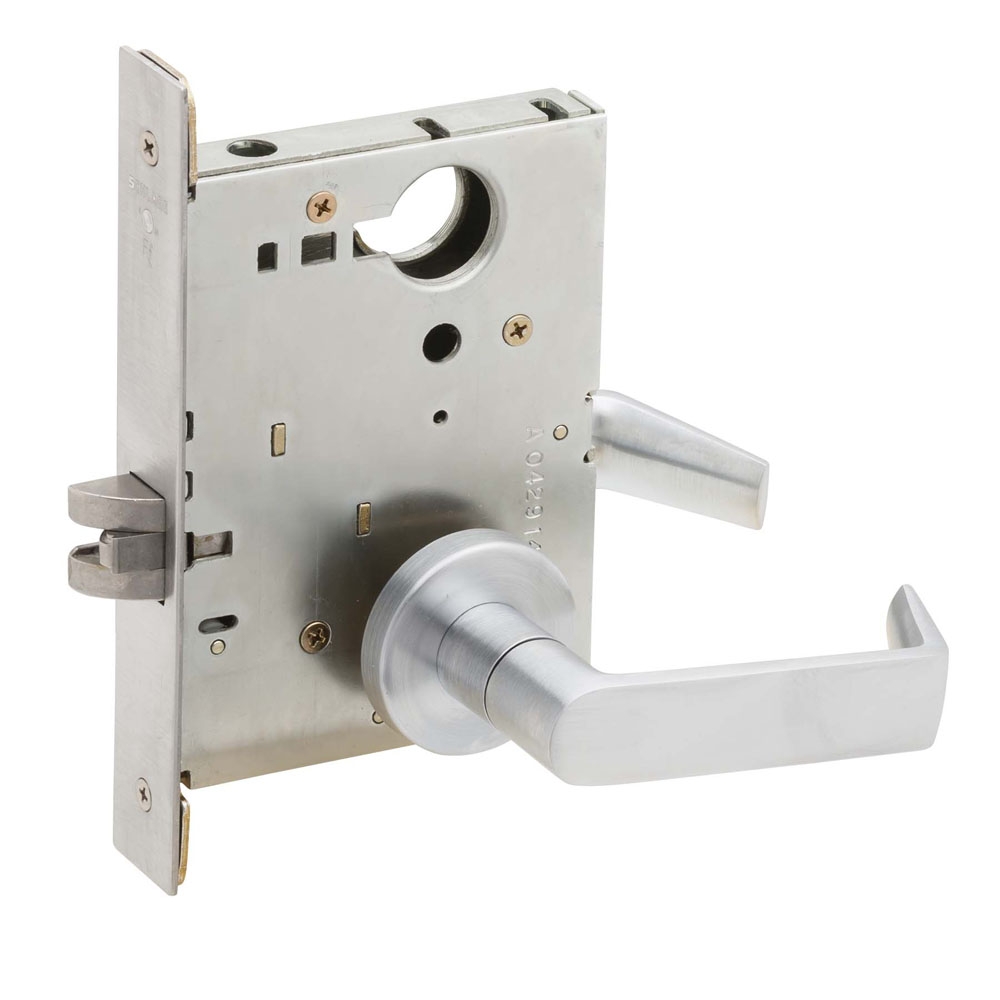

Schlage L9092ELL-06A-626 Electrified Mortise Lock

Security

• Tested and certified to ANSI/BHMA Grade 1 operational and security standards
• UL listed for 3-hour fire door; spring-loaded fusible link inside lock case provides fail secure mode in case of fire
• Deadbolt features include anti-saw pin in bolt to prevent cut-through
• Security blocking hub prevents lock access by removing levers
• Vandlgard® option allows the outside lever to rotate freely down to prevent damage from excessive force while in a locked state
• Lock monitoring options include request to exit (RX), latchbolt (LX), door position (DPS), and deadbolt (DM) (availability varies by function)
• Patented Everest 29™ S123 keyway is provided standard which prohibits unauthorized key duplication
• Restricted geographically exclusive Primus upgraded security options offer advanced key control and exceptional physical security

Aesthetics

• 33 lever styles constructed of solid brass or solid stainless steel offer a strong-yet-comfortable feel
• Additional style options include two knobs, five roses, and two escutcheons
• 12 available finishes (depending on lever style) with options for antimicrobial coating
• Locking lever bushing eliminates exposed screws on inside levers
• 180-degree visibility indicator trim option for locked/unlocked status available for most functions
• Lock status indication trim option uses red and white backgrounds to ensure quick readability for color blind individuals (see L Series Grade 1 Mortise Indication Trims web page for details)
• All levers suite with Von Duprin exit devices, along with related products: electrified L Series mortise lock, multipoint locks, and LT Series tubular locks

Functions

• “The Original” universal lock case allows creation of 7 functions from a single lock body
• 42 keyed and non-keyed functions
• Six mechanical functions offer optional key override of the inside thumbturn when it is being held in the locked position to stop unwanted barricade situations
• Nine L Series electrified mortise lock functions (see separate web page for details)
• Ten mortise deadbolt functions (see separate web pages for details)
• Custom functions available - contact us for information

Built to Last

• Two piece anti-friction tongue in latch bolt reduces wear
• Breakaway spindle keeps door secured in the event of vandalism
• Field reversible latch bolt allows handing change without opening case
• Every Schlage lock undergoes intensive testing to determine its ANSI grade level including: cycle, resistance, door impact, warped door and bolt strength tests
