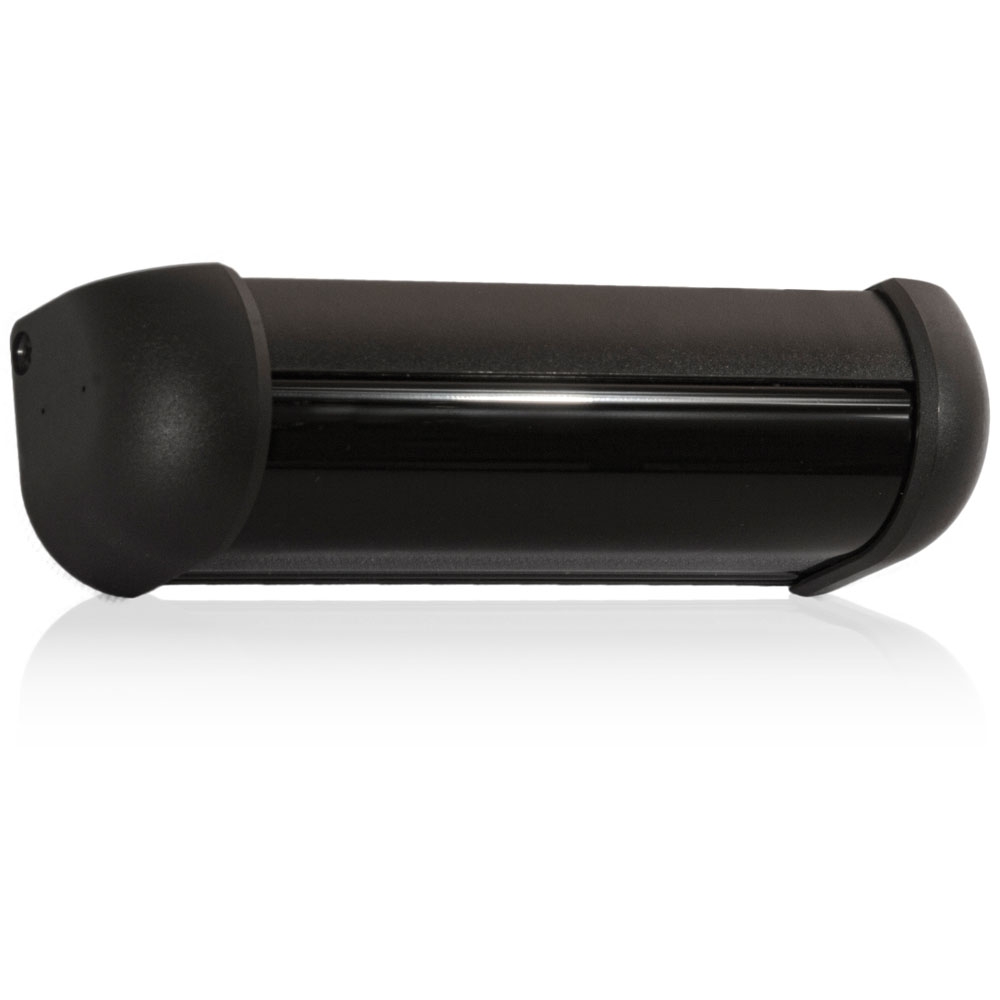

The 10R2E-100 by BEA is now available at North Shore Commercial Door. The UL 294 / ULC S319 Listed 10R2E-100 uses an active infrared detection zone focused directly on the door handle and only detects people intending to exit through the door. This is achieved through the specific act of reaching for the door handle. The active infrared based 10R2E-100 improves accuracy of detection as compared to passive infrared technology including ground based errors, sensor spoofing and known vulnerabilities (hot air, background objects, cross traffic, etc.).
The 10R2E-100 has an adjustable tilt angle from 0˚ to 10˚ and the low profile sensor mounts on or above the door frame. Adjustable detection range from 20 to 48 inches (can accommodate swinging doors up to 7 feet). The 10R2E-100 features multiple re-locking modes for timed or door position conditions. The relay output consists of two Form "C" contacts for NO/NC wiring. Adjustable, built-in audible alarm notes activation. 3 DRY auxiliary inputs: request to exit, card reader and push button.
Technical Information:
- Detector Type: Focused Active Infrared
- Supply Voltage: 12 to 24 VAC/VDC; ±10% @ 60 Hz
- Current:
- Sounder OFF: 155 mA
- Sounder MAX VOLUME: 200 mA
- Temperature (UL Install): -32˚F to +120˚F (0˚C to +49˚C)
- Temperature: -20˚F to +120˚F (-29˚C to +49˚C)
Humidity (ULC S319 Installation): 0% to 93% non-condensing
Humidity (UL 294 Installation): 0% to 85% non-condensing
Detection Range: 20 in to 48 in, adjustable
Relay: 2 Form "C" contact sets;
1.3 A @ 24 VAC
30 VDC
Relay Hold Time: 0.5 to 60 seconds, adjustable
Sounder: 85 dB max, adjustable volume
Indicator LED's: Green, Red, Yellow, Orange
REX Input: Dry contact, NO
Card Reader Input: Dry contact, NC
Door Position Switch Input: DRY contact, NO
Dimensions (L x H x W): 6.875 in x 1.875 in x 2 in
Material: Plastic (ABSs and PC)
Wiring Interface: JST (14 Pin) with 4 ft cable
Norm Conformance:
UL 294 / ULC S319
FCC Part 15 B
