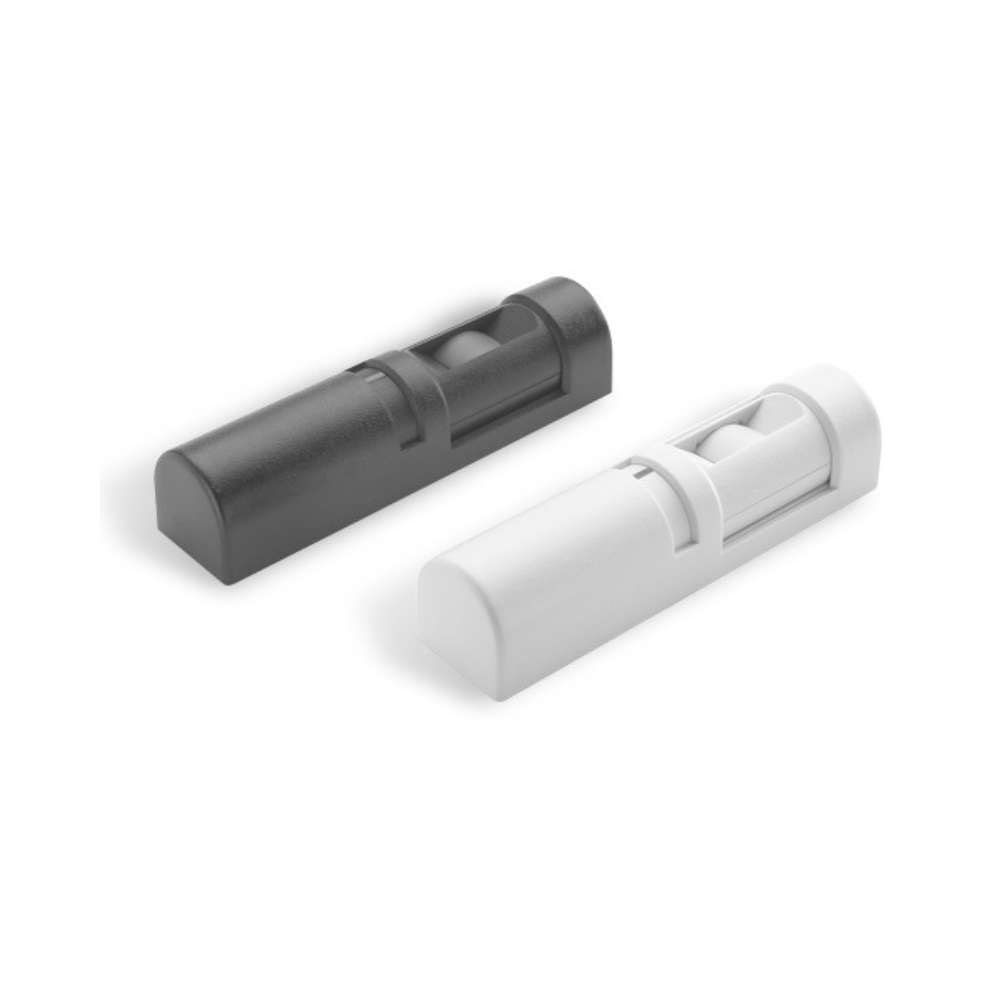

The Schlage Electronics SCAN-2B is a high-performance passive infrared motion sensor specifically designed for "request-to-exit" applications. This sensor offers robust features and versatile installation options, making it ideal for various commercial and institutional settings.
Key Features and Specifications
- Detection System: The SCAN-2B utilizes passive infrared technology to detect motion, ensuring reliable performance.
- Adjustable Relay Latch Time: The sensor allows for adjustable relay latch time from 0.5 to 64 seconds, providing flexibility based on specific security needs.
- Selectable Fail-Safe/Fail-Secure Operation: Users can select between fail-safe and fail-secure modes, enhancing the security and safety features.
- Pattern Masking Kit: Includes a pattern masking kit that snaps into place, allowing for the customization of the scan field and prevention of unwanted activations.
- Activation LED: An externally visible activation LED provides a clear indication of the sensor's status.
- Internal Pointability: The sensor is internally pointable, allowing for precise alignment to optimize coverage.
- Two Form "C" Relays: Equipped with two sets of form "C" relay contacts rated at 1A at 30VDC.
- Dimensions and Construction: The SCAN-2B measures 1-1/2 inches in height, 6-1/4 inches in width, and 1-1/2 inches in depth. It is housed in a high-impact ABS plastic enclosure, available in black, which is designed for easy mounting and adjustment.
Applications
The SCAN-2B is suitable for use in various applications, including commercial buildings, healthcare facilities, and educational institutions, where secure and controlled exits are required. Its robust design and versatile features make it an excellent choice for ensuring secure access and egress points.
