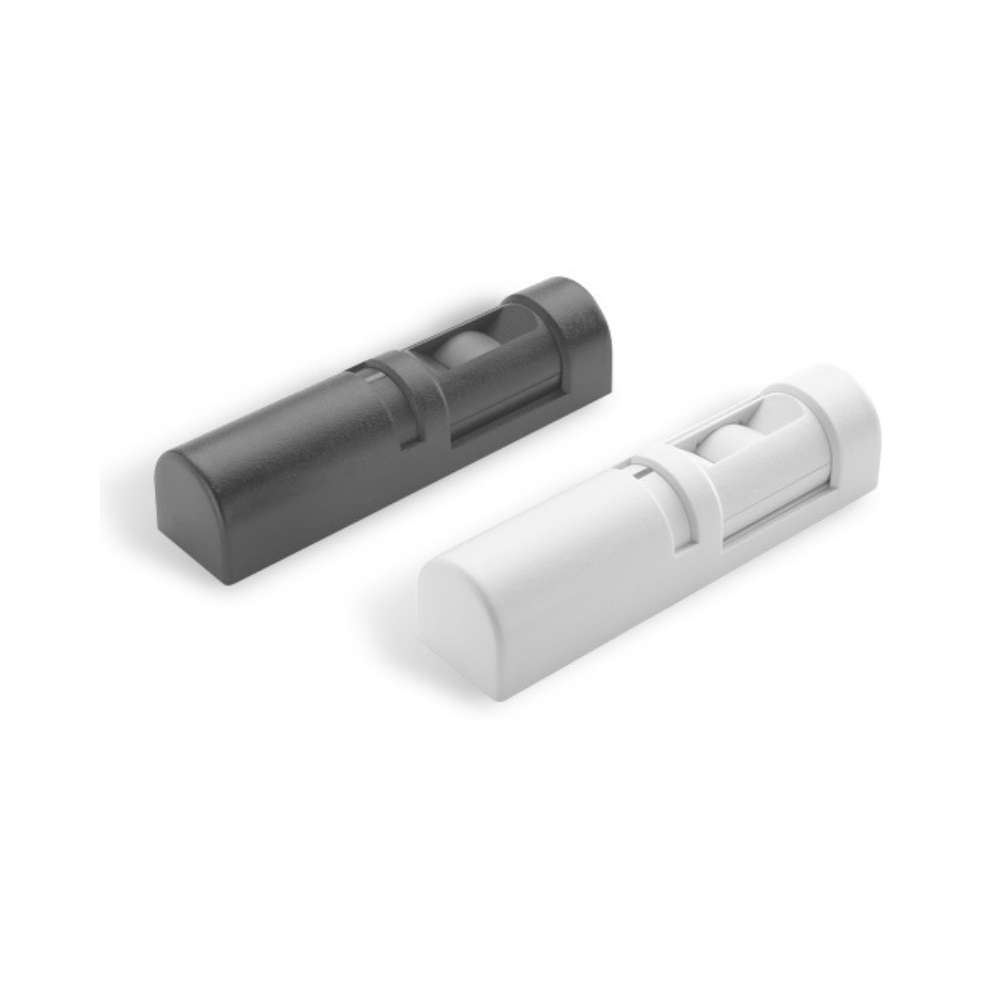

Schlage Electronics SCAN-2W Motion Sensor, White

SKU # LN/SCAN-2W

The Schlage Electronics SCAN-2W Motion Sensor, White is a White Motion Sensor. The Scan II™ is a compact, passive infrared detector specifically designed for "request-to-exit" applications. It features adjustable relay latch time, an externally visible activation LED, and two form "C" relays. The high-impact ABS plastic enclosure in white comes apart in 3 pieces for easy mounting and lock-in-place scanner angle adjustment. Internal angle setting marks aide optimal coverage configuration for both wall and ceiling mounting. Mounting height is 7 to 15 feet allowing coverage area of the Scan II sensor of up to 8 by 10 ft (2.4 m by 3 m).

Features include:

  • Motion Sensor
  • White
  • Adjustable relay latch time from 0.5 to 64 seconds
  • Field-selectable fail safe/fail secure
  • Included pattern masking kit snaps in place to narrow scan field and help prevent unwanted activations
  • Activation LED is visible at a distance and can be configured to OFF as needed
  • Intended for indoor use only
  • Wall or ceiling mounted with lock-in-place angle adjustment
  • UL294 and ULC-S319, Class 1 listed by manufacturer
  • High-impact ABS plastic enclosure and internal electronics can endure temperatures of -20° to 120°F
  • Inconspicuous unit is only 1.5" x 6.25" x 1.5"
US$476.76

Description:

Description:

Schlage Electronics SCAN-2W Motion Sensor

The Schlage Electronics SCAN-2W Motion Sensor is a high-quality passive infrared detector specifically designed for "request-to-exit" applications. This sensor is equipped with several features to enhance security and functionality, making it suitable for various indoor environments.

Key Features and Specifications

  • Adjustable Relay Latch Time: The SCAN-2W offers an adjustable relay latch time ranging from 0.5 to 64 seconds, providing flexibility in how long the sensor remains activated after detecting motion.
  • Field-Selectable Fail Safe/Fail Secure: This feature allows the device to be configured based on security needs, either remaining locked (fail secure) or unlocked (fail safe) in the event of a power failure.
  • Activation LED: The sensor includes an LED indicator that is visible at a distance, which can be configured to turn off if desired, providing clear visual feedback on the sensor's status.
  • Pattern Masking Kit: Included with the sensor is a pattern masking kit that can be used to narrow the scan field, helping to prevent unwanted activations by only detecting motion in specified areas.
  • Installation Flexibility: The SCAN-2W can be wall or ceiling mounted and includes lock-in-place angle adjustments to ensure optimal coverage. It is designed to cover an area up to 8 by 10 feet (2.4 by 3 meters) when mounted at a height between 7 and 15 feet.
  • Construction and Durability: Made from high-impact ABS plastic, the sensor is built to withstand temperatures ranging from -20°F to 120°F, ensuring reliable performance in various indoor conditions.
  • Power Requirements: The sensor operates on 12/24VDC, with a current draw of 35mA at 12VDC and 38mA at 24VDC.
  • Relay Contacts: The device features two form "C" relay contacts rated at 2.0 Amps @ 30 VDC or VAC, suitable for DC resistive loads.

Applications

The Schlage SCAN-2W Motion Sensor is ideal for use in commercial buildings, healthcare facilities, educational institutions, and other settings where controlled access and secure exits are essential. Its passive infrared technology ensures reliable detection of motion, making it an excellent choice for enhancing security and exit control.
