RCI 970-MO-24V-40 Switches

RCI 970-MO-24V-40 Switches

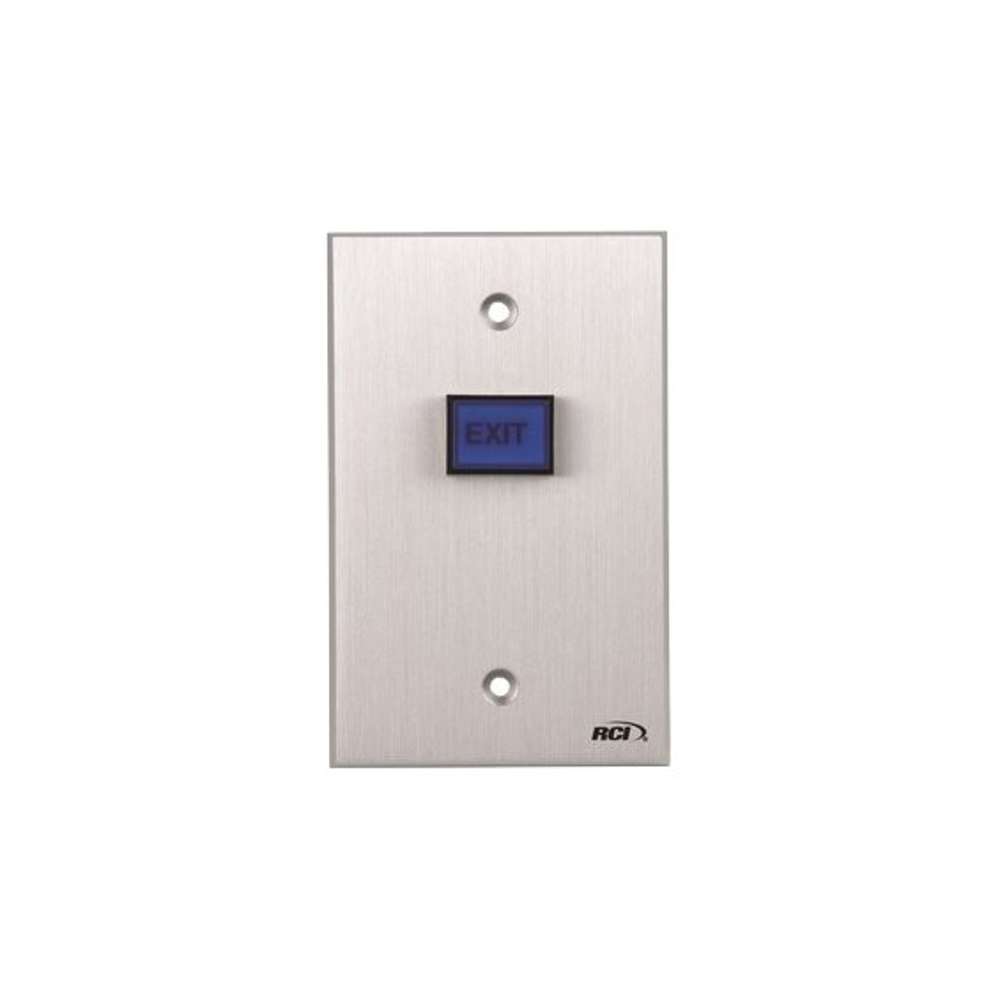

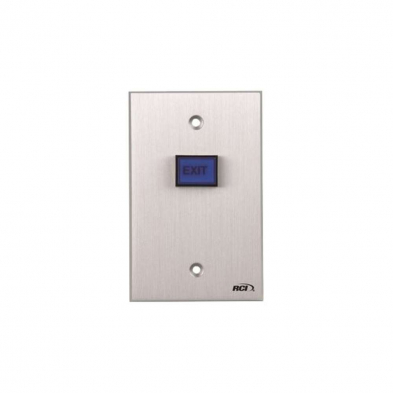

The 970 illuminated exit push button is available in blue (standard), yellow, green, or red lens options. The sleek-looking, beveled-edge RCI 970 request-to-exit buttons are designed to discourage tampering. A special driver and tamperproof screws are included to prevent unauthorized faceplate removal. Momentary (2-SPST or 4-SPST), maintained (2-SPST or 4-SPST) or time-delay (DPDT) switches are available with this illuminated switch to allow for operation flexibility. The RCI 970 also offers an optional audible alert that is mounted on the faceplate.

• Standard: 3"W x 4-3/4"H (76mm x 121mm)
• Narrow(N): 1-5/8"W x 4-3/4"H (41mm x 121mm)

Accessories
9SURBOX - Surface-mount single gang box
TD30 - 30 second fixed timer (12/24VDC)
TD30A - 0-30 second adjustable timer (12/24VDC)

Applications
Commercial and Industrial
Vandal-Prone Areas
Vestibules
Storefront
Health Car

Narrow, Momentary, Maintained, or Time-Delay Versions

 970-MO-12V (Momentary, 12V), 970-MO-24V (Momentary, 24V), 970-MA-12V (Maintained, 12V), 970-MA-24V (Maintained, 24V), 970-TD-12V (Electronic Time Delay, 12V), 970-TD-24V (Electronic Time Delay, 24V), 970N-MO-12 (Narrow, Momentary, 12V), 970N-MO-24 (Narrow, Momentary, 24V), 970N-MA-12V (Narrow, Maintained, 12V), 970N-MA-24V (Narrow, Maintained, 24V), 970N-TD-12V (Narrow, Electronic Time Delay, 12V), or 970N-TD-24V (Narrow, Electronic Time Delay, 24V).

• Illuminated pushbutton
• Quickly mounts to single gang box (Standard) or narrow-stile door frames (Narrow)
• Extruded aluminum 1/4" (6mm) plate with beveled edges for
• Tamper-resistance and durability
• Hardware kit includes stainless steel tamper-proof screws and spanner bit
• Momentary (2-SPST or 4-SPST), maintained (2-SPST or 4-SPST) or time-delay
• (DPDT) switches available
• 12 and 24VAC/VDC options available
• Optional audible alert add-on
• Blue (standard), yellow, green, red lens options
• Faceplate available in Brushed Anodized Aluminum (28) or Brushed Anodized Dark Bronze (40) finish
• Technical Details
