RCI 975-MO-12V-40 Switches

RCI 975-MO-12V-40 Switches

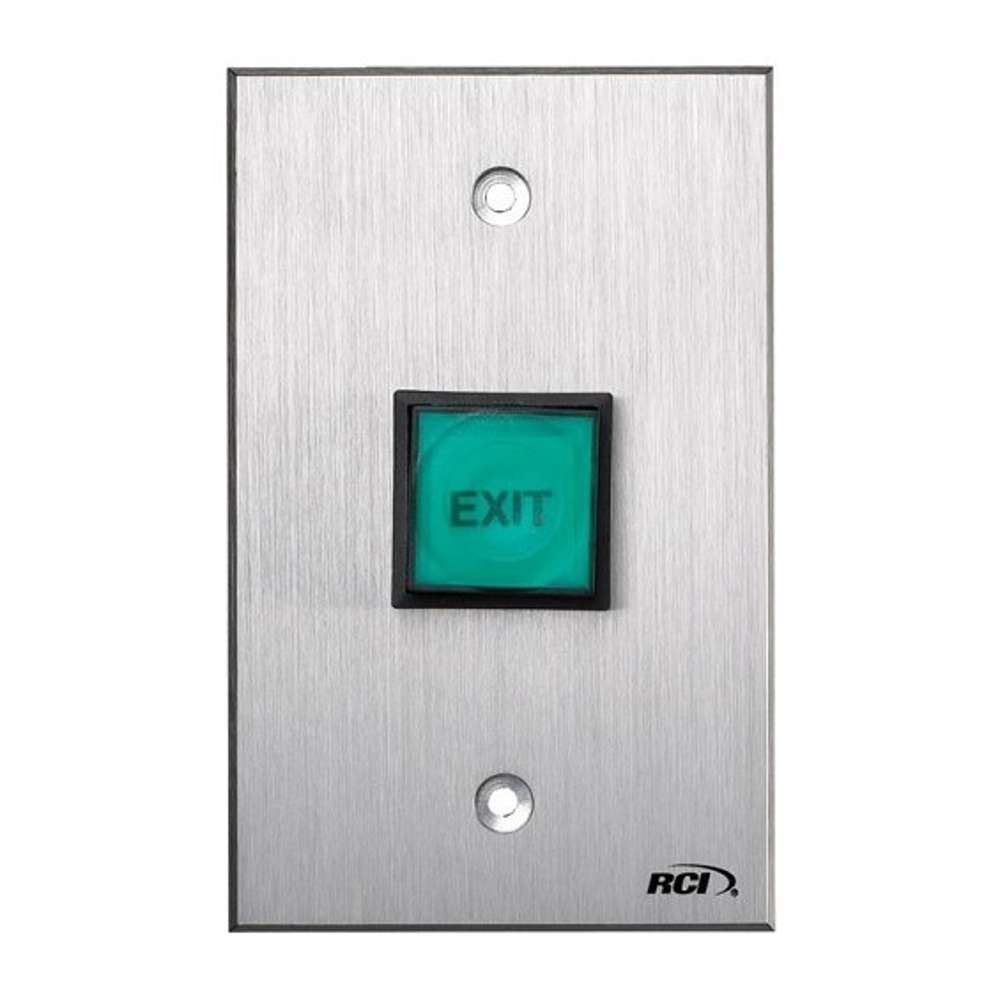

The 975 illuminated exit push button is a 1” square button with a green lens and LED illumination. RCI's 975 push button has a permanent LED, that meets code for push buttons that are required to be internally illuminated by a permanent light source. The RCI 975 is available in both standard (3”W) and narrow (1-5/8”W) plate sizes, allowing the button to be installed on most door frames without a surface box. Momentary (2-SPST) or time-delay (DPDT) switch options are available to create a customized access procedure.

Technical Details
Standard: 3"W x 4-3/4"H (76mm x 121mm)
Narrow: 1-5/8"W x 4-3/4"H (41mm x 121mm)

Accessories
9SURBOX - Surface-mount single gang box
TD30 - 30 second fixed timer (12/24VDC)
TD30A - 0-30 second adjustable timer (12/24VDC)

Applications
Handicapped Areas
Vandal-Prone Areas
Vestibules and Storefront
Industrial and Commercial
Health Care Facilities

LED Permanent Light Source, Narrow Version Available

 975-MO-12V (Momentary, 12V), 975-MO-24V (Momentary, 24V), 975N-MO-12V (Narrow, Momentary, 12V), or 975-MO-24V (Narrow, Momentary, 24V).

• 1" (25mm) square illuminated LED pushbutton, green lens
• Quickly mounts to single gang box (Standard) or narrow-stile door frames (Narrow)
• Extruded aluminum 1/4" (6mm) plate with beveled edges for tamper-resistance and durability
• Hardware kit includes stainless steel tamper-proof screws and spanner bit
• 12 and 24VAC/VDC options available
• Faceplate available in Brushed Anodized Aluminum (28) or Brushed Anodized Dark Bronze (40) finish
• Momentary (2-SPST) or time-delay (DPDT) switches available
