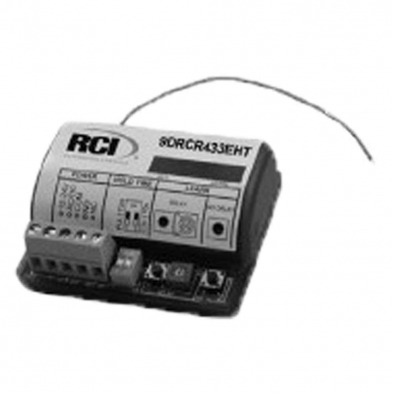

RCI 9DRCR433EHT Switches

RCI 9DRCR433EHT Switches

The 9RCT433 & 9DRCR433 transmitters and receivers are compatible with multiple automatic door remote applications with delay or no delay programming. The transmitters and receivers operate securely with a unique rolling code each time the switch is activated. The RCI transmitters and receivers are designed for operator flexibility and control. 100 transmitters can be programmed into a single receiver and up to four separate wireless receivers can be activated by a single transmitter.

Operates with a unique rolling code each time the switch is activated
Multiple applications with Delay or No Delay programming
100 transmitters can be programmed into a single receiver
Removal of a single transmitter code
Up to 4 separate wireless receivers can be activated by a single transmitter (i.e. 4-Button)
Red LED indicator on transmitter confirms transmission and battery life
3 Year Limited Warranty
Technical Details

• 9RCT433/9DRCR433 Transmitters & Receivers
• Dimensions: 2-3/4"W x 2-1/8"H x 1"D (70mm x 55mm x 14mm)
• 3V or 9V battery power, for use with push plates and has the required terminals to adapt the switch terminals
• Certifications: FCC, IC, CE

Universally Compatible with all Automatic Door Remote Applications

433 MHz Receiver w/Extended Hold Time

RCI's 9RCR433 Receiver and 9RCT433 Transmitters are universallycompatible with all automatic door "remote" applications.

STANDARD FEATURES

• Operates with a unique rolling code each time the switch isactivated
• Multiple applications (i.e. Vestibule) with Delay or No Delayprogramming
• 100 transmitters can be programmed into a single receiver
• Removal of a single transmitter code
• Up to 4 separate wireless Receivers can be activated by asingle Transmitter (i.e. 4-Button)
• Red LED indicator on Transmitter confirms transmission andbattery life
• 3-Volt or 9-Volt Battery Power
• Ideal for the wireless activation and/or sequencing ofautomatic doors
• Secure signal
• Multiple receivers can be programmed differently, allowing forsequencing in multiple applications
• No Delay will active immediately upon receiving the transmittersignal
• Delay will activate at the end of their predetermined timedelay set by the potentiometer
• Multiple receivers allow for the uninterrupted pace or handsfree operations through a pair of doors upon initialactivation
