RCI 9DRCR433VB Switches

SKU # RU/9DRCR433VB

Universally Compatible with all Automatic Door Remote Applications

Features:

  • Operates with a unique rolling code each time the switch is activated
  • Multiple applications (i.e. Vestibule) with Delay or No Delay programming
  • 100 transmitters can be programmed into a single receiver
  • Removal of a single transmitter code
  • Up to 4 separate wireless Receivers can be activated by a single Transmitter (i.e. 4-Button)
  • 3-Volt or 9-Volt Battery Power
  • Ideal for the wireless activation and/or sequencing of automatic doors
  • Secure signal
  • Multiple receivers can be programmed differently, allowing for sequencing in multiple applications
  • No Delay will active immediately upon receiving the transmitter signal
  • Delay will activate at the end of their predetermined time delay set by the potentiometer
  • Multiple receivers allow for the uninterrupted pace or hands free operations through a pair of doors upon initial activation
US$61.20

Description:

Description:

RCI 9DRCR433VB Switches

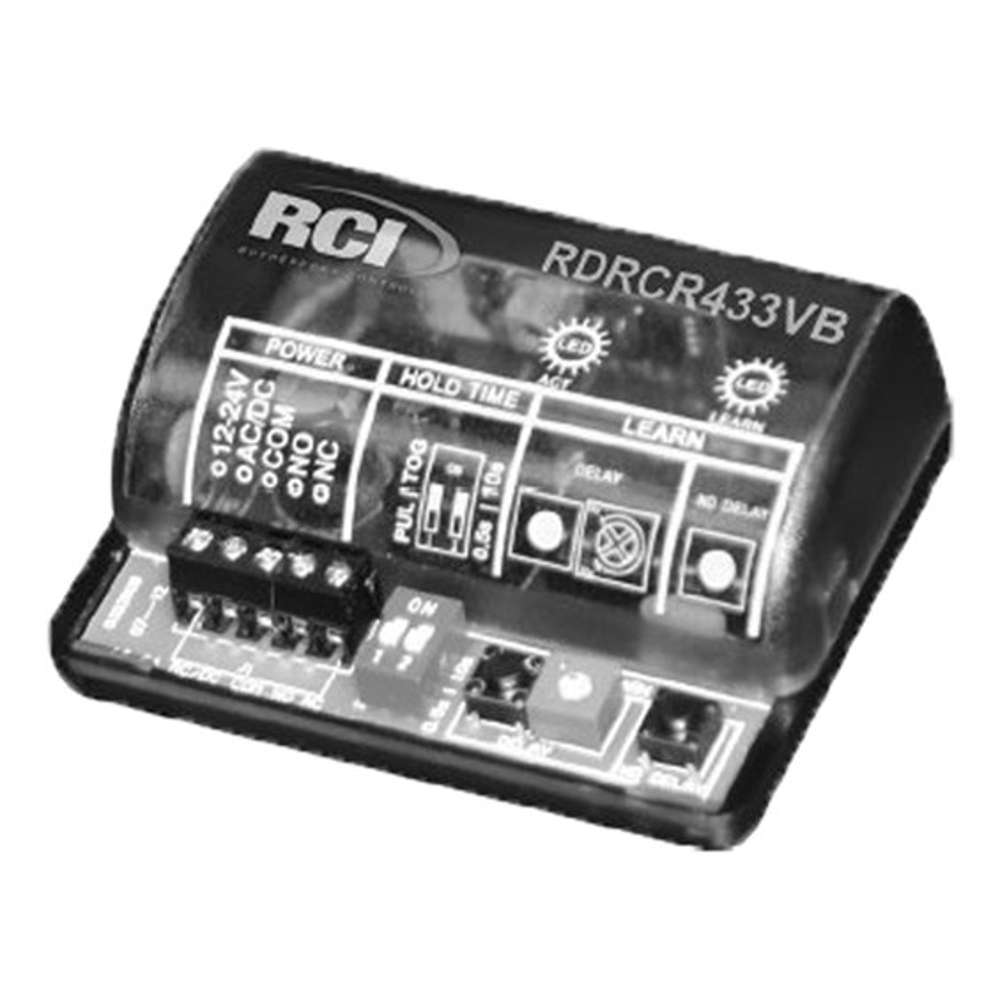

RCI's 9RCR433 Receiver and 9RCT433 Transmitters are universally compatible with all automatic door "remote" applications.

Technical Specifications:
Frequency: 433 MHz
Emitted Radio Power: -28.7 dBm (TX)
Power Consumption: 3mA (TX) 30mA (RX)
Input Voltage: 12 to 24 VAC/DC (RX)
Contact Rating: 1.0 A @ 30 VDC, 0.5 A @ 125 VAC, 0.3 A @ 60 VDC
Operating Temperature: 14F to 131F (-10C to 55C)
Max No. of Programmed Units Per Receiver: 100 Transmitters
LEDs Receiver Learn: Red
Relay Activation: Blue
Receiver Dimensions: 2-3/4" x 2-1/8" x 1" (70 mm x 55 mm x 25 mm)
Certifications: FCC, IC, CE
