RCI 9RCT4333 Switches

RCI 9RCT4333 Switches

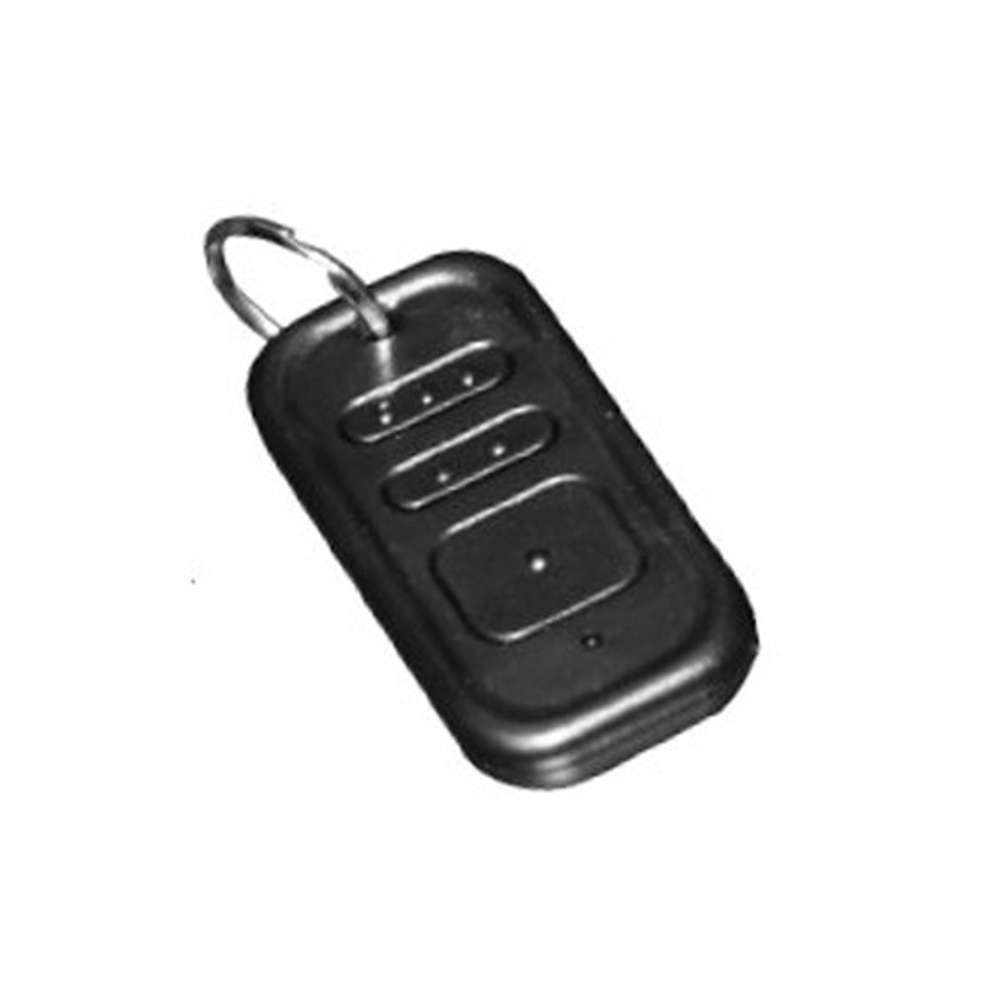

433 MHz Four-Button Handheld Transmitter

RCI's 9RCR433 Receiver and 9RCT433 Transmitters are universallycompatible with all automatic door "remote" applications.

The 433MHz Series Transmitters and Receiver are ideal for the wireless activation and/or sequencing of automatic doors and remote access control. The transmitters are available in hand-held or pushplate styles and they transmit a unique rolling code each time the transmitter is activated (thus providing a secure door opening signal). The transmitter PN: 9RCT4339V1 is powered by a 9-volt battery whereas all other transmitters are powered by a 3 volt battery and all illuminate a Red LED when activated.

Since receivers can be individually programmed, multiple receivers can be programmed differently thus allowing for sequencing in multiple applications. Upon activation (pushplate / transmitter), all receivers will acquire the signal at the same time; however, each receiver will respond according to their programming. Those receivers programmed with NO DELAY will active immediately upon receiving the transmitter signal. Those receivers programmed with a DELAY will activate at the end of their pre-determined time delay set by the potentiometer. The use of multiple receivers will allow for the uninterrupted pace or hands free operations through a pair of doors upon initial activation.

The 9RCT433 & 9DRCR433 transmitters and receivers are compatible with multiple automatic door remote applications with delay or no delay programming. The transmitters and receivers operate securely with a unique rolling code each time the switch is activated. The RCI transmitters and receivers are designed for operator flexibility and control. 100 transmitters can be programmed into a single receiver and up to four separate wireless receivers can be activated by a single transmitter.

• Operates with a unique rolling code each time the switch is activated
• Multiple applications with Delay or No Delay programming
• 100 transmitters can be programmed into a single receiver
• Removal of a single transmitter code
• Up to 4 separate wireless receivers can be activated by a single transmitter (i.e. 4-Button)
• Red LED indicator on transmitter confirms transmission and battery life
• 3 Year Limited Warranty
