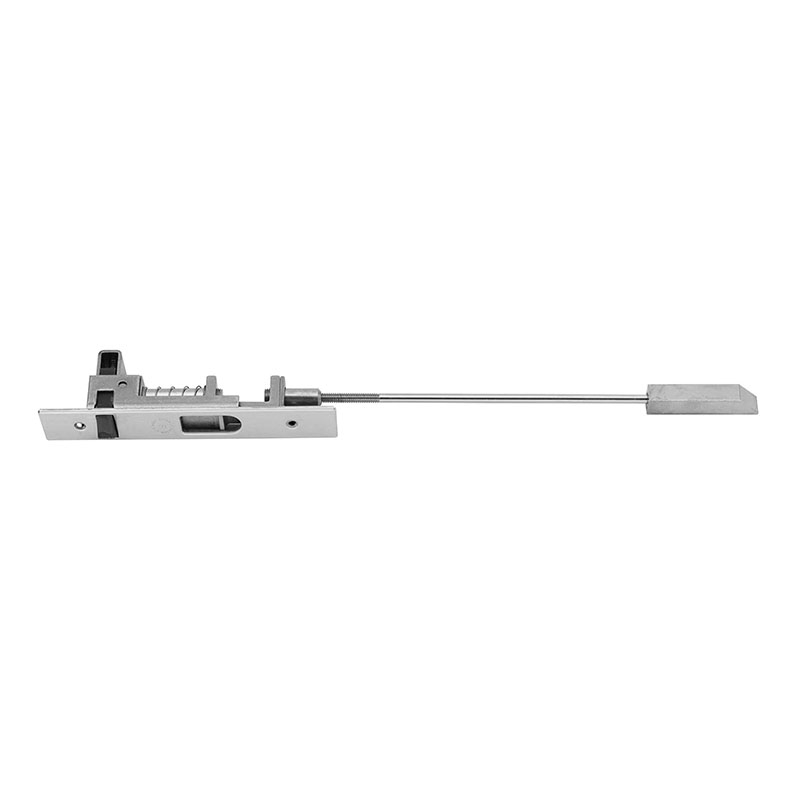

The Ives-Glynn Johnson FB51T-12-MD-US32D Top Bolt is a top, 12 inch Flushbolt for Metal Doors.
Features include:
- Satin stainless steel finish over Stainless steel Substrate US32D
- Top bolt only.
- For use with metal doors only
- Constant latching—inactive door remains latched until the active door is opened, releasing the automatic bottom bolt and then the top bolt can be manually released. Inactive door will relatch automatically when closed.
- Low actuation forces
- Non-handed.
- Bolt throw is 3/4" with a 7/8" vertical adjustment.
- Bolt backset is 3/4"
- Rod length is 12", which is measured from the center of the flush bolt body to the bolt tip
- Body size (Width X Length X Depth) 1" x 6-3/4" x 2"
- Guide size (Width X Length X Height X Thickness) 1" x 1-27/32" x 11/16" x 3/32"
- Strike size (Width X Length X Thickness) 15/16" x 2-1/4" x 1/16"
- Rub plate size (Width X Length X Thickness) 1-1/4" x 1-11/16" x 3/64"
- Meets ANSI A156.3 Type 27
- Fits standard ANSI A115.4 door frame preparations.
- UL Listed 3 Hour fire doors 8’0" X 8’0"
- Mounting
- 8-32 X 3/8" UFPHMS
- 10-12 X1-1/4" Plastic anchor
- 6-32 X 3/8 FPHMS
- 6 X 3/4 FPHSMS
- 8 X 1 FPHSMS
- 10 X 1 FPHSMS
