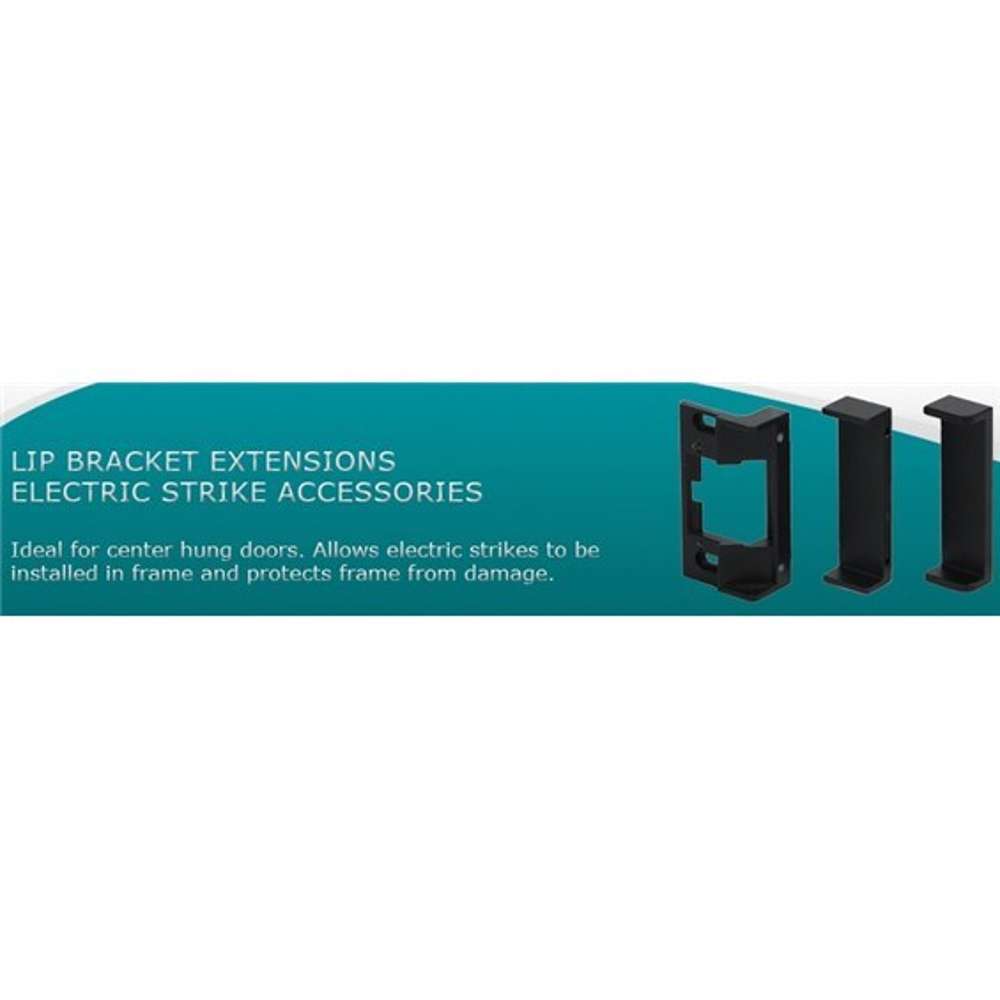

RCI LEKS601 Lip Bracket Extension

SKU # RU/LEKS601

The Lip Bracket Extensions are part of RCI

  • Standard profile accommodates 3/4" (19mm) and Low-profile accommodates 1/2" (12.7mm) or 5/8" (16mm) latch projections
  • 1/4" (6.4mm) horizontal adjustment
  • Plug-in wire connectors
  • Trim plate included to cover up irregular frame cut-out
  • Non-handed
  • 375mA Field-Selectable 12/24VDC, 12-24VAC (At 12VDC)
  • 1,500lbf Static 70ft-lb Dynamic (04 & 14 faceplates only. Grade 2, 1,000lbf static for 05, 07 & 08 faceplates)
  • 500,000 Cycles (04 & 14 faceplates only. Grade 2, 1,000lbf static for 05, 07 & 08 faceplates)
  • Field-Selectable Fail-Secure & Fail-Safe
  • Optional Latch & Keeper Monitor Models Available
US$39.00

Description:

Description:

RCI LEKS601 Lip Bracket Extension

The 6 series centerline strikes are available in standard profile or low-profile options to accommodate different latch projections. This heavy-duty series combines several requested key features. Standard features include a multi-voltage single solenoid, selectable lock mode (no tools necessary), horizontal adjustment, and plug-in wire connectors. ¼” horizontal adjustment makes installations faster and easier. Plus, with the RCI 6 series there will be less pressure on installer’s strike inventory, because these RCI strikes do it all.

  • Energy: 375mA Field-Selectable 12/24VDC, 12-24VAC (At 12VDC)
  • Strength: 1,500lbf Static 70ft-lb Dynamic (Grade 1, 04 & 14 faceplates only. Grade 2, 1,000lbf static for 05, 07 & 08 faceplates)
  • Endurance: 500,000 Cycles (Grade 1, 04 & 14 faceplates only. Grade 2, 1,000lbf static for 05, 07 & 08 faceplates)
  • Mode: Field-Selectable Fail-Secure & Fail-Safe
  • Monitoring: Optional Latch & Keeper Monitor Models Available
  • Warranty: 10-Year Limited Warranty

Applications

  • Commercial Centers
  • Industrial Buildings
  • Educational Facilities
  • Retail Outlets
  • Health Care Facilities
  • Office Complexes
