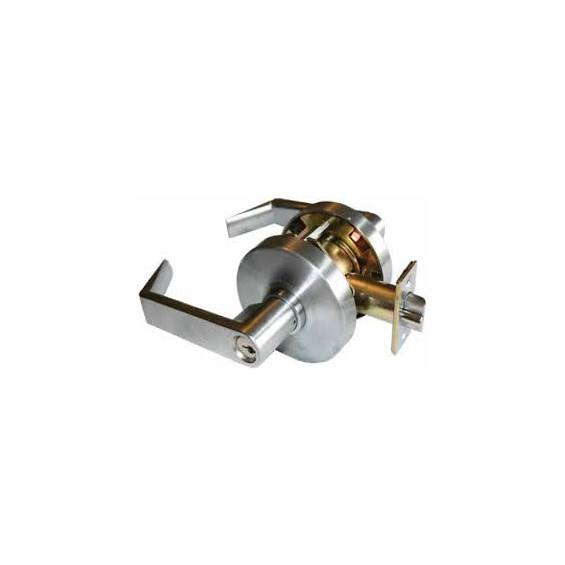

Global Door DL-LSV Companion Satin Chrome Saturn Lever

SKU # GDDL-LSV-CF

Read Review(s) | Log in to Review

Global Door DL-LSV Satin Chrome Saturn Lever
"Grade 2 Cylindrical Lever Locks"
- Finish: Satin Chrome (626).

- Select Function: Passage (DL-LSV10), Privacy (DL-LSV40), Entrance (DL-LSV53), Classroom (DL-LSV70), or Storeroom (DL-LSV80)
- Select Keying: Keyed Alike, Keyed Different or Master Keyed.

- Note: Sold with Schlage "C" Keyway

- Delivery: All TA DL-LSV Series Grade 2 Leversets are In Stock and Available to ship.
US$58.16
Select Lever

Select Keying

Main Item Price US$ 58.16
Optional Item Price US$ 58.16
Price for this Configuration US$ 116.33
Comments or instructions

Description:

Description:

Global Door DL-LSV Satin Chrome Saturn Lever
DL-LSV Series Levers by Trans-Atlantic

The DL-LSV Series cylindrical leversets are designed for use on standard Grade 2 commercial applications. The LSV Saturn Style is ADA compliant.

Function: The DL-LSV Series Lever is available in Passage (DL-LSV10), Privacy (DL-LSV40), Entrance (DL-LSV53), Classroom (DL-LSV70), Storeroom (DL-LSV80), and Dummy (DL-LSVDT) function.
Lever Design: The DL-LSV Series Lever is available in Saturn style lever.
Finish: The DL-LSV Series Lever comes in Satin Chrome (626) finish.
Handing: The DL-LSV Series Lever is a non-handed (reversible) lever.

Door Range: 1-3/4" - 2".
Backset: Standard 2-3/4" backset.
Cylinder: Schlage "C" keyway.
Keying: Schlage 6-pin keyed.
Key: 2 six pin Nickel Plated.

Latch: 1/2" projection Stainless Steel. Face: 1-1/8" x 2-1/4" (Optional 3 hour UL Rated).
Bore: 2-1/8" hole retrofits all cylindrical locksets. Fits 161 Prep doors.
Thru-bolted: Removable Thru-Bolts.
Strike: ANSI 1-1/4" x 4-7/8" strike.
Certification: UL listed ANSI A156.2 Grade 2.
