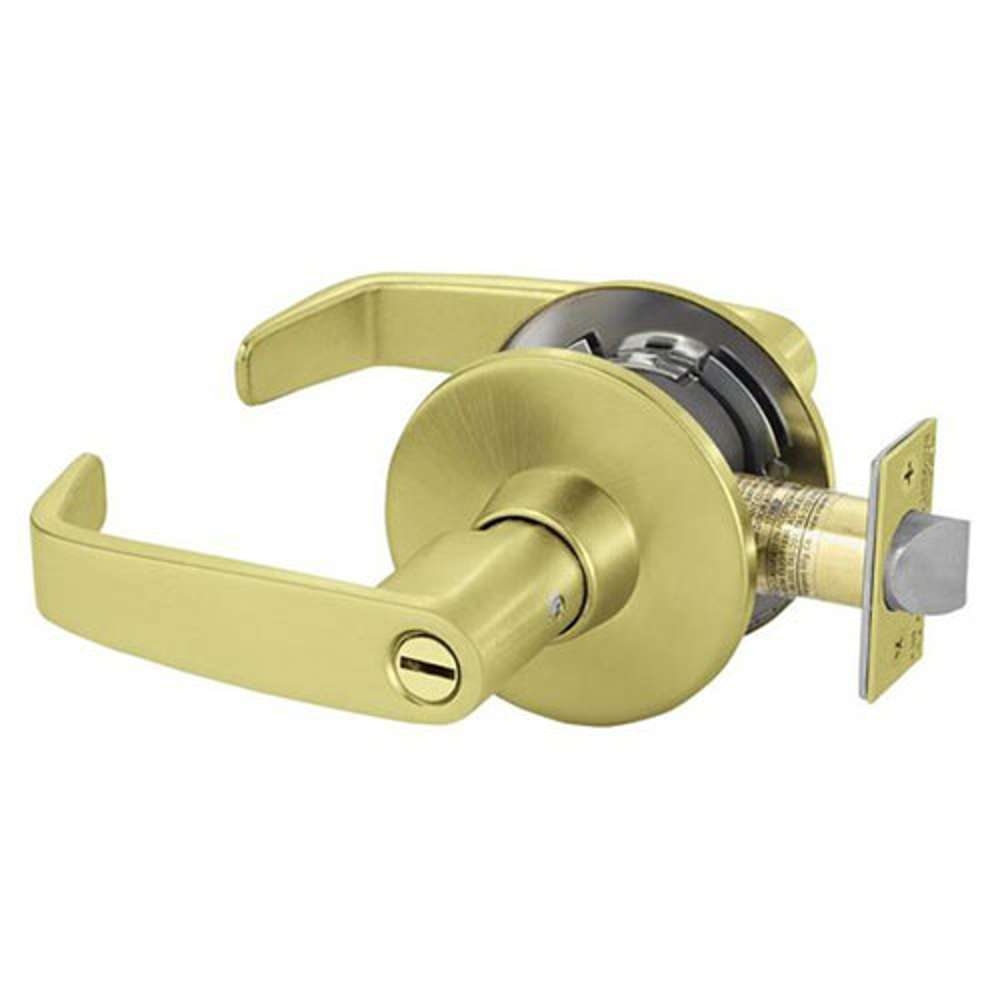

Sargent Commercial 11-Line Grade 1 Cylindrical Lever Locks
11-Line Series Levers by Sargent Commercial
Experience is the best teacher.
SARGENT designed the 11 Line to meet the demanding environments of educational facilities. The unique T-Zone construction easily exceeds ANSI/BHMA Grade 1 requirements for torque and cycle testing, ensuring durability in abusive applications. For flexiblity and ease of management, a single lock body serves all functions. Plus, the 11 Line offers a classroom security function with unique locking indicator to help during panic situations. Durable, flexible, reliable-for educational facilities, this lock is in a class by itself.
Patented "T-Zone" construction with true interlocking between the lockbody and the latch. Provides unequalled strength and durability for the most demanding applications.
Features and Benefits
- Withstands more than TWO TIMES ANSI/BHMA A156.2 Grade 1 torque force on a locked lever.
- T-Zone lock technology tested to 15 times the standard in ANSI/BHMA A156.2 Grade 1 cycle testing.
- 15 MILLION cycles equals over 55 years of opening life in many facilities.
Door Handing
The Sargent Commercial 11-Line Series Levers are reversible.
Durable and Reliable
Independently-vertified cycle testing provides the 11 Line will last the lifetime of the facility. No through bolts or surface screws to be installed improperly or forgotten; T-Zone construction prevents the lock from twisting.
Function: The Sargent 11-Line Series Levers are available in Passage (11U15), Privacy (11U65), Entry/Office (11G05), Classroom (11G37), Storeroom (11G04), and Single Dummy (11U93) function.
Finish: The Sargent 11-Line Series Levers come in Brass (605) and Satin Chrome (626) finish.
Lever Design: The Sargent 11-Line Series Levers come in B Design (LB) and L Design (LL).
Cylinder Options: All Entry/Office (11G05), Classroom (11G37), and Storeroom (11G04) functions are sold Less Cylinder; see "Companion Items" above for all Cylinder & Keying options.
Door Range: 1-3/4" - 2" (44mm - 51mm).
Backset: Standard 2-3/4" backset.
Strike: Curved lip 800 supplied standard.
Latchbolt: Standard 1/2" throw.
Certification: Meets and greatly exceeds ANSI A156.2 Series 4000 - Grade 1.
Special Order Information: For pricing on any function or finish of the Sargent Commerical 11-Line Levers not found on this page please contact Taylor Security direct via e-mail (sales@taylorsecurity.com) or call us toll-free at 1-800-676-7670.
