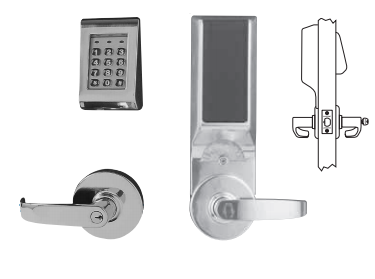

Sargent 28-10G77-LKL-26D 10-Line Cylindrical Keypad Lock

The SARGENT 10X Line isn't just built to last, it's built to thrive. Engineered for high-traffic, high-abuse environments, it exceeds ANSI/BHMA Grade 1 standards by up to 20 times, ensuring reliable performance throughout its entire lifecycle.

Featuring EcoFlex® technology, the electrified 10X Line bored lock is a game-changer for sustainability, boasting a remarkable 92% energy savings in electromechanical applications like Wave to Open, Request to Exit, or Door Position Switches.

Elevating privacy and security, the 10X Line now includes status indicators that provide immediate visual confirmation of a room's occupancy or locked/unlocked status. Ideal for sensitive spaces like restrooms and classrooms, these indicators enhance both user comfort and peace of mind.

Specifications

• ANSI/BHMA Code: A156.2
• Backset Depth (Standard): 2 3/4"
• Cylinder Format: Large Format, Small Format, Conventional
• Cylinder Pins: 6 pin, 7 pin
• Door Thickness (Standard): 1 3/4"
• Grade: Grade 1
• Handing: Non-handed
• Latchbolt Throw: 1/2"
• Maximum Backset: 5"
• Minimum Backset: 2 3/8"
• Maximum Door Thickness: 2"
• Minimum Door Thickness: 1 3/8"
• Number of Keys: 2
• Strike Type (Standard): ANSI Curved Lip
• UL Listed: Yes
• ULC Listed: Yes
• Warranty: 10-year limited warranty; 2-year for electrical components

The Sargent 28-10G77-LKL-26D Cylindrical Keypad Lock is a Cylindrical Keypad Lever Lock. The SARGENT® 10 Line is a heavy duty cylindrical key-in-lever handle lockset exceeds by nine times the ANSI 156.2 Series 4000 Grade 1 standards, at over 9 million cycles. As for abusive force, this lock endures more than 1.5 times the standard without allowing entry. The 10 line trim is designed to conform to national and state fire and handicapped requirements.

Features include:

• Cylindrical Lever Lock with a Keypad for the 10 Line
• 28 - Curved Lip Strike (#808)
• Certified ANSI A156.2 Series 4000 - Grade 1
• UL listed to U.S.A. and Canadian safety standards Listed for 3 hour doors
• Motor driven 10 Line cylindrical lock
• Latchbolt brass, 1/2" (13mm) throw; UL Listed 3/4" (19mm)
• 2-3/4" (70mm) backset standard.
• Non handed
• Heavy duty lever spring return rose assembly
• Steel spacer bushing and extended one-piece bearing sleeves
• Steel mounting studs
• 3 through-bolt position combinations
• Key override standard
• For 1-3/4" (44mm) thick doors standard
• Rose Design L
• Keypad K
• Lever Design L
• Satin Chrome
