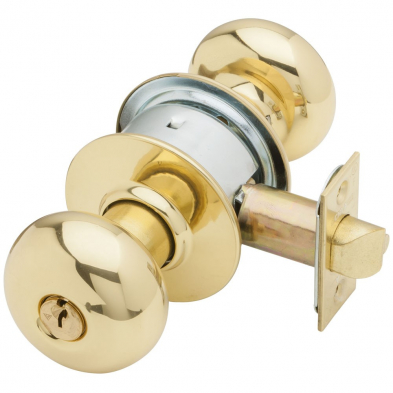

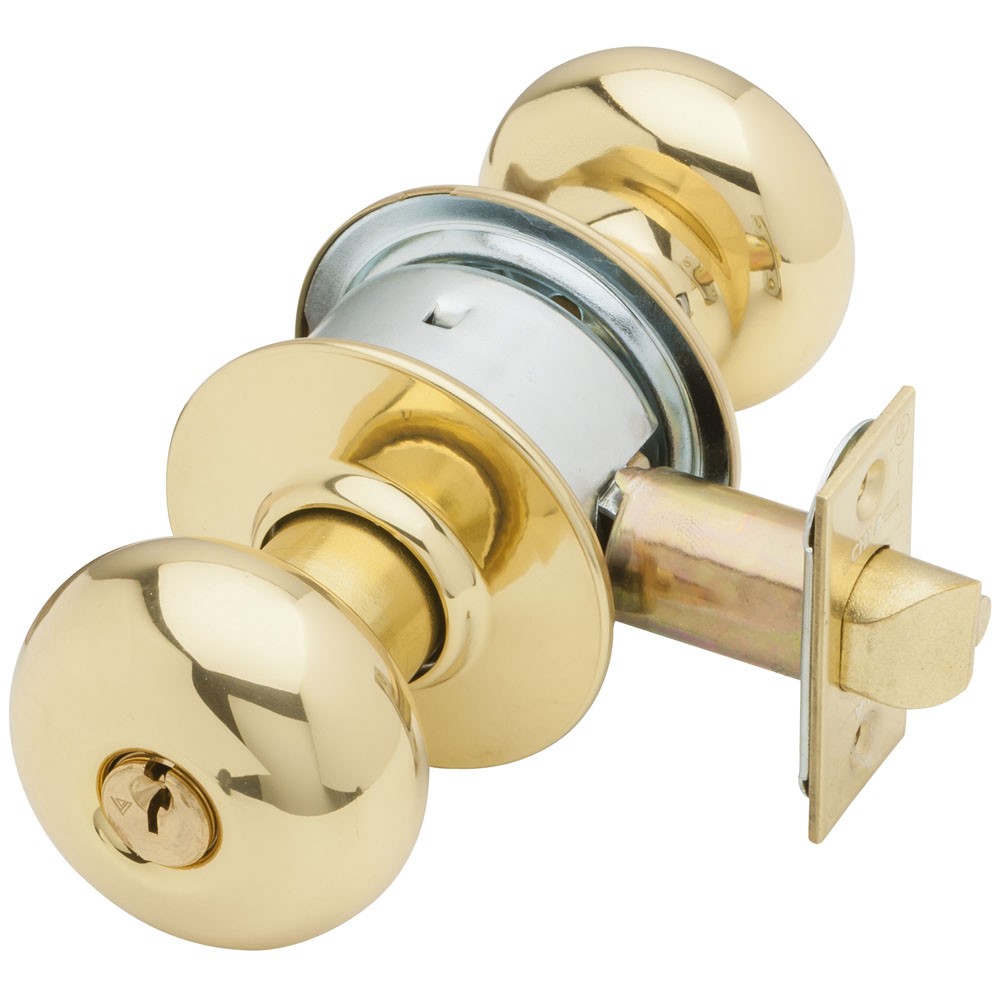

Schlage Lock Grade 2 Series Cylindrical Knob Locksets with Companions

SKU # SCALINE-CF

The SCALINE Schlage Lock Grade 2 Cylindrical Knob Locksets

- Select Finish: See Dropdown.

- Select Design: See Dropdown.

- Select Function: See Dropdown.

Product Features Include:

  • Handing: Keyed functions are reversible. Non-keyed functions are not handed.
  • Door Thickness: 1 3/8” to 1 7/8” (35 mm to 48 mm) standard. 2” (51 mm) to 2 1/2” (64 mm) optional extended inside.
  • Backset: 2 3/8”(60 mm) standard. 2 3/4” (70 mm), 3 3/4”(95 mm) and 5” (127 mm) optional.
  • Front: Steel. 1 1/8” x 2 1/4” square corner, beveled, for 2 3/4” backset standard. Optional 1” square corner, 1” radius corner, and non-UL drive-in/round face.
  • Lock Chassis: Steel, zinc dichromate plated for corrosion resistance.
  • Latch Bolt: Brass, chrome plated, 1/2” throw, deadlocking on keyed and exterior functions.
  • Exposed Trim: Wrought brass, bronze or stainless steel. Levers are pressure cast zinc, plated to match finish symbols.
  • Strike: T-strike 1 1/8” x 2 3/4” (29 mm x 70 mm) x 1 1/8” (29 mm) lip to center with box standard. Optional strikes, lip lengths and ANSI strike box available.
Pricing varies based on options selected below.
US$59.16
Handle

Main Item Price US$ 112.32
Optional Item Price US$ 56.40
Price for this Configuration US$ 168.72
Comments or instructions

Description:

Description:

From military barracks and offices, to fine residential homes, Schlage A-Series knobs easily stand up to constant use and abuse, while keeping people and property safe. Our A-Series locks have an ANSI Grade 2 rating and come in a choice of styles and finishes that fit your building’s design.

Schlage doesn't compromise on security. The safety and security of your buildings is something we take very seriously. That’s why every Schlage lock and deadbolt undergoes intensive testing to determine its ANSI grade level:

  • Cycle tests
  • Resistance tests
  • Door impact tests
  • Warped door tests
  • Bolt strength tests

Features and Benefits

-Cold rolled steel, and machined and threaded hubs prevent loosening of the lockset by bolting the chassis to the door.

-Heavy-duty cast mounting plate with specially tapped holes keeps lockset tight on the door.

-Patented door range adjuster allows quick and easy adjustment for doors ranging from 1 3/8” to 1 7/8” (35 mm to 48 mm) thick



Door Handing

Many Schlage locks are reversible. Hand information is necessary to ensure proper cylinder orientation in keyed functions, and finish of latchbolt and strike for locks that are to be installed on reverse bevel doors.
