- Applications: Residential single-and multi-family doors.
- Certifications: ANSI A156.2, 1996, Series 4000 Grade 2.
- Interior screws are not concealed.
- Easy 3-step installation, only a screwdriver needed.
- Quality materials and construction for exceptional security.
- Quality finishes coordinate with plumbing and lighting.

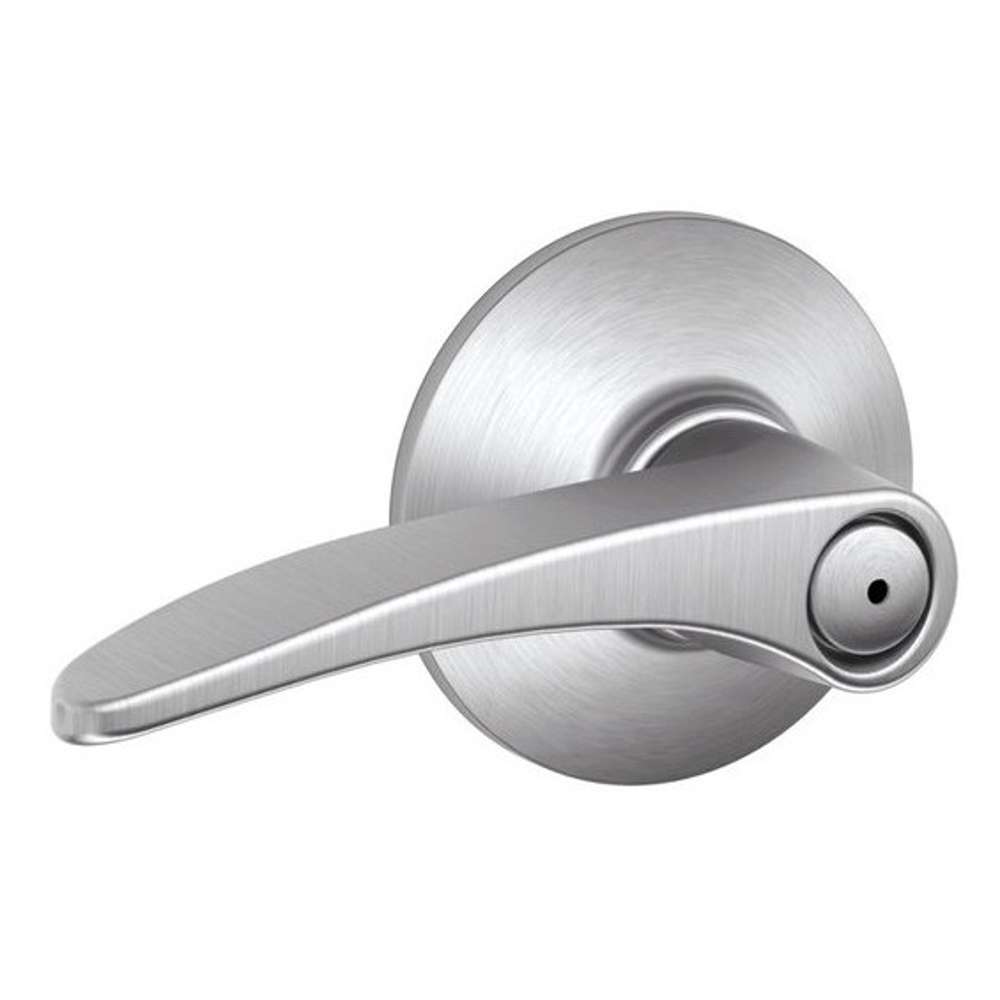

Function: The Schlage Manhattan Lever is available in Passage (F10 MNH), Privacy (F40 MNH), Keyed Entry (F51A MNH), and Single Dummy (F170 MNH) function.
Finish: The Schlage Manhattan Lever comes in Satin Nickel (619), Polished Chrome (625), and Satin Chrome (626) finish.
Handing: The Schlage Manhattan Lever is non-handed (reversible) except for the dummy function; Left Hand (LH) or Right Hand (RH).
All Schlage Decorative Locks come standard with Triple Option (Round Corner, Square Corner, Drive-in) Spring Latches (16-210) and Dead Latches (16-211).
Door Range: 1-3/8 - 1-3/4 (35mm - 44mm).
Backset: Dual Backset Latch; adjustable for 2-3/8 or 2-3/4 backset.
Strike: 1-5/8 x 2-1/4 Radius Corner Faceplate, 7/8 Housing Diameter, 1/2 Throw, Round Corner.
