The Greenwich Rosette is a modern and stylish trim that lends a chic touch of simplicity to any space. The Greenwich trim has a subtle arch design with a Californian flair and was inspired by the look and feel of Mid-Century Modern homes.
- Applications: Residential single-and multi-family doors.
- Certifications: ANSI A156.2, 1996, Series 4000 Grade 2.
- Interior screws are not concealed.
- Easy 3-step installation, only a screwdriver needed.
- Quality materials and construction for exceptional security.
- Quality finishes coordinate with plumbing and lighting.

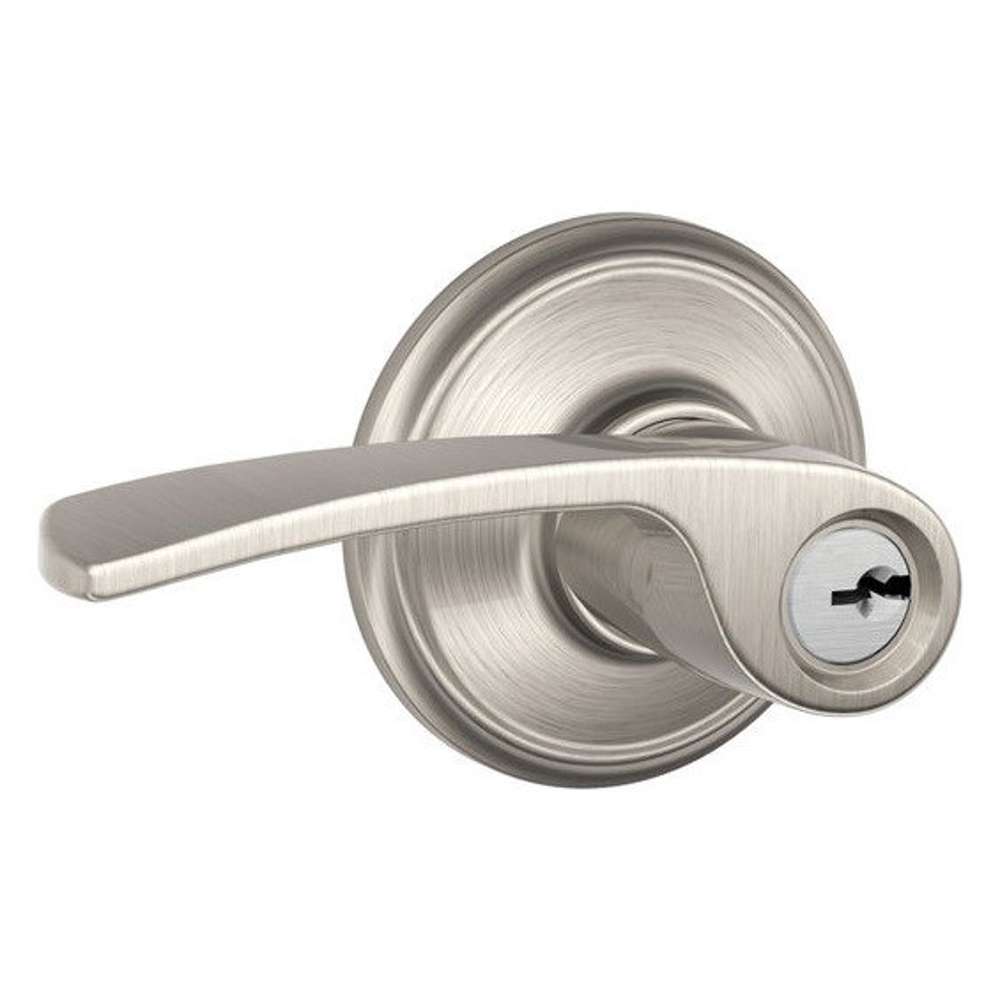

Function: The Schlage Merano Lever is available in Passage (F10 MER), Privacy (F40 MER), Keyed Entry (F51A MER), and Single Dummy (F170 MER) function.
Finish: The Schlage Merano Lever comes in Satin Nickel (619), Matte Black (622), Polished Chrome (625), Satin Chrome (626), and Aged Bronze (716) finish.
Rosette: The Schlage Merano Lever comes in Greenwich (GRW) Rosette.
Handing: The Schlage Merano Lever is non-handed (reversible) except for the dummy function; Left Hand (LH) or Right Hand (RH). Click here for Handing Diagram.
Standard with Triple Option (Round Corner, Square Corner, Drive-in) Spring Latches (16-210) and Dead Latches (16-211).
Door Range: 1-3/8" - 1-3/4" (35mm - 44mm).
Backset: Dual Backset Latch; adjustable for 2-3/8" or 2-3/4" backset.
Strike: 1-5/8" x 2-1/4" Radius Corner Faceplate, 7/8" Housing Diameter, 1/2" Throw, Round Corner.
