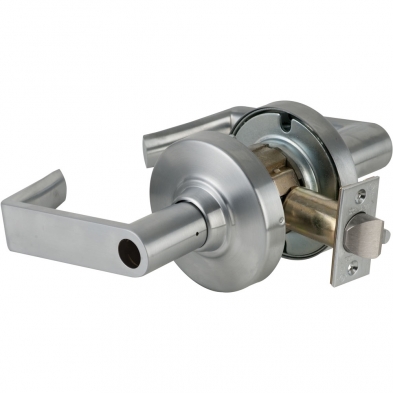

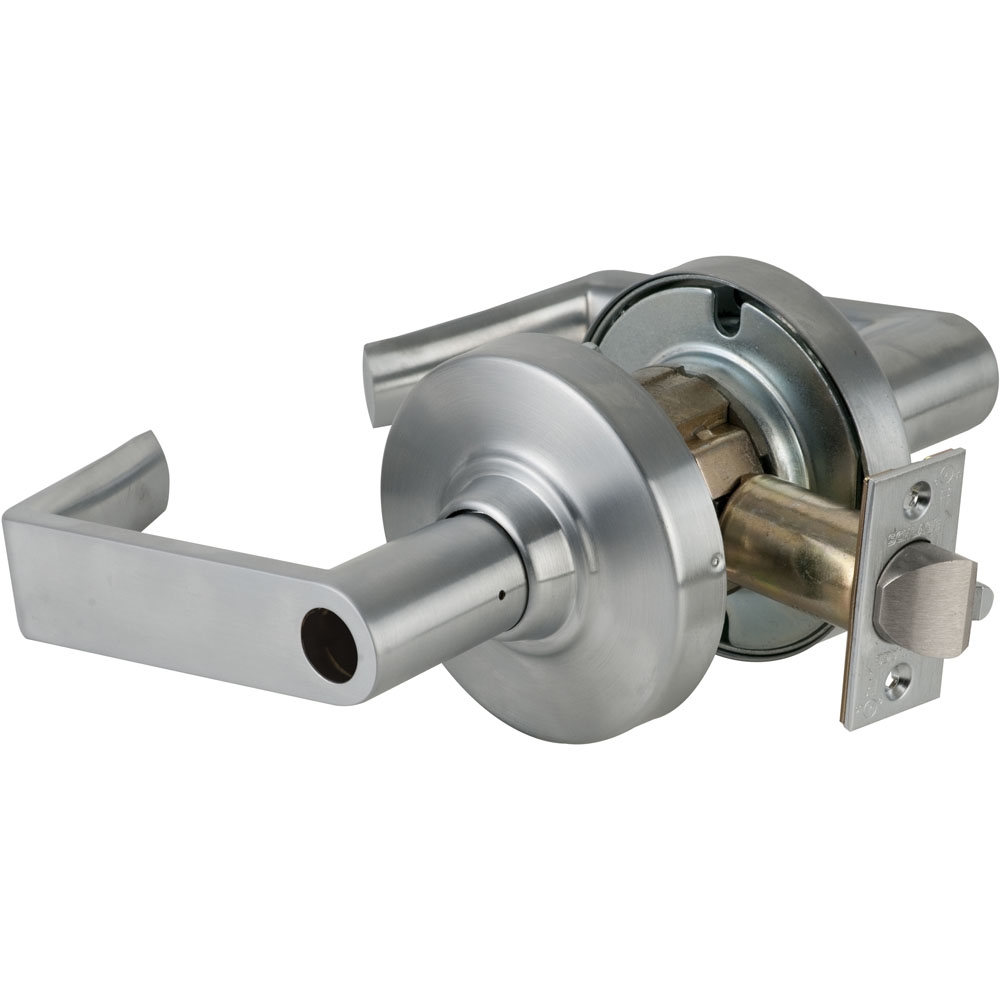

Schlage ND96LD-RHO-626 Grade 1, Cylindrical Lock
The Schlage ND cylindrical lock uses a motor instead of a solenoid to provide quiet operation and energy efficiency. The maximum current draw of 0.23 amps allows more locks to run off a single power supply. A low, 0.010 amp holding current eliminates any potential for hot levers in electrically locking applications or in electrically unlocking applications where the door is left open for long periods of time. ND Series can be quickly and easily installed and is compatible with various key systems for field adaptability. It suites seamlessly with the other ND Series hardware which includes both purely mechanical and fully electronic solutions. When it comes to access control, mechanical components are just as important as their electronic counterparts. The Schlage ND Series provides versatility and easy installation to complete your access control system.
Exceeds ANSI A156.2 series 4000 Grade 1 torque requirements
• Universal input voltage – accepts 12V or 24V DC for installation flexibility
• Change operation mode between Electrically Unlocking (EU or Fail Secure) and Electrically Locking (EL or Fail Safe) by simply flipping a switch on the chassis
• Low maximum current draw allows multiple locks on a single power supply
• Low holding current produces minimal heat, eliminating "hot levers" in electrically locking applications
• Request-to-exit functionality can be easily upgraded in the field with the following kit part #: N123-062
• Extensive options for lever styles, finishes and functions • UL listed for 3-hour fire door
• Available with Vandlgard® lever engagement on storeroom function
- ideal for areas subject to abuse or vandalism
