Smart security for light commercial and multi-family applications.
At Schlage, we know that every product you specify has to stand up to constant use, while meeting your needs for security at every level. Our S Series and S200 Series locks are designed to deliver constant, reliable performance in light commercial applications like small hotels, laboratories and office tenant spaces, as well as apartment buildings.
We don't compromise on security.
The safety and security of your buildings is something we take very seriously. That's why every Schlage lock and deadbolt undergoes intensive testing to determine its ANSI grade level:
- Cycle tests - Warped door tests
- Resistance tests - Bolt strength tests
- Door impact tests
We pay attention to these details so you can focus on creating a functional and aesthetically pleasing environment for your clients. In fact, everyone of our S Series locks meets ANSI Grade 1 standards for safety.
Features and Benefits
- Engineered for long life and optimum durability.
- Heat-treated steel locking components for extra strength.
- Independent heavy-duty lever torsion springs for durability and long life.
Door Handing
The Schlage Commercial S-Series Levers are reversible.
ADA-Compliant Products
In compliance with the American National Standard Institute (ANSI A117.1) and the Americans with Disabilites Act (ADA), Schlage Lock Company offers a wide selection of locks designed for the needs of the physically challenged. This act is designed to provide protection for people with disabilites.
The intent of ADA is that owners of certain types of buildings must remove barriers and provide people with disabilities with access equal to, or similar to, that available to the general public.

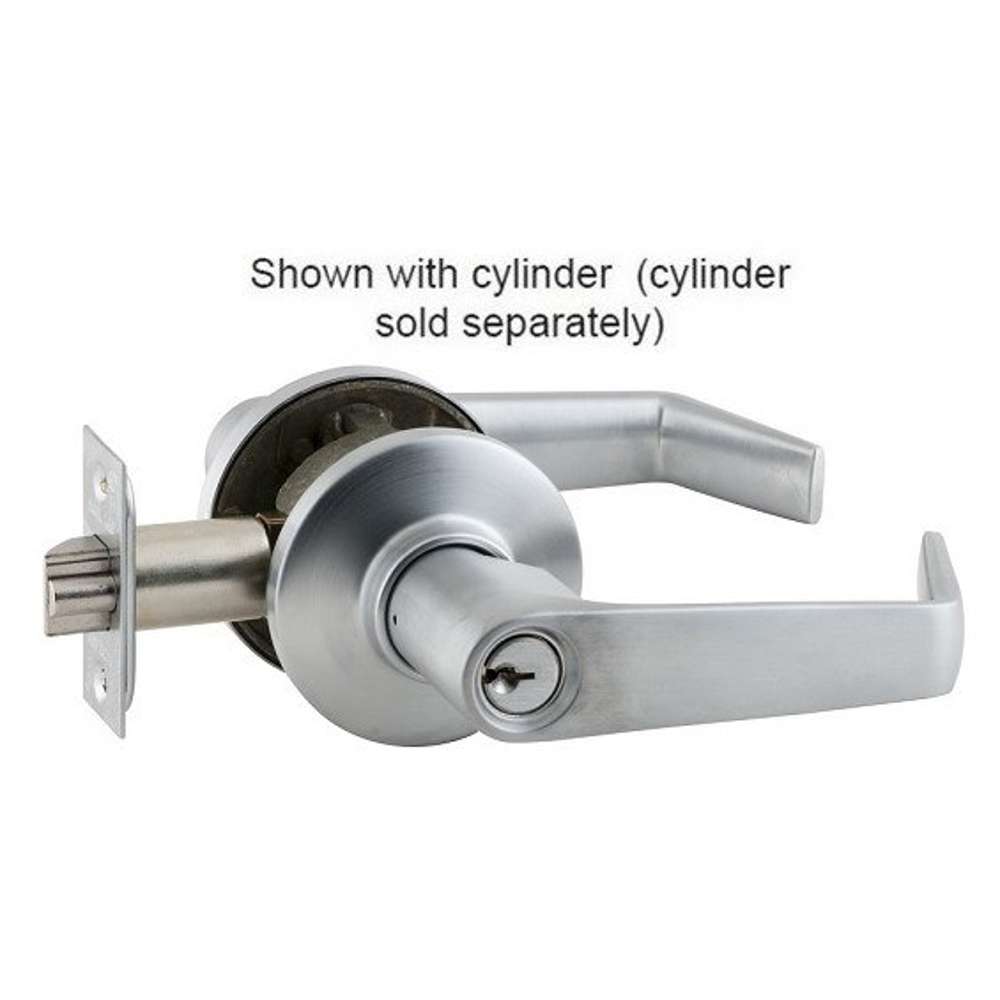

Function: The Schlage S-Series Levers are available in Passage (S10D), Privacy (S40D), Keyed Entry (S51D), Classroom (S70D), Storeroom (S80D), and Single Dummy (S170) function.
Finish: The Schlage S-Series Levers come in Brass (605), Oil Rubbed Bronze (613), and Satin Chrome (626) finish.
Lever Design: The Schlage S-Series Levers come in Saturn (SAT) design.
Cylinder Options: All Entrance (S51LD), Classroom (S70LD) and Storeroom (S80LD) functions are sold Less Cylinder; see "Companion Items" above for all Cylinder & Keying options.
All Schlage S-Series Locks come standard with Square Corner Backset Latch (Spring Latch 16-203; Deadlatch 16-203) and Square Corner Strike (10-001).
If you require Round Corner Strikes (10-004) please order from our Door Strikes Section.
Door Range: 1-3/8" - 2" (35mm - 51mm). S40D: 1-3/8" - 1-7/8" (35mm - 48mm).
Latch: 1-1/8" x 2-1/4", Square Corner Faceplate, 7/8" housing diameter, 1/2" throw.
Strike: 1-1/8" x 2-3/4", Square Corner, T-Strike, Box (10-001).
Backset: Dual 2-3/8" or 2-3/4" Backset (Spring Latch 16-203; Deadlatch 16-203).
Certification: ANSI/BHMA Certified A156.2-2011, Series 4000, Grade 2, UL Listed for 3-hour fire door.
