Kaba Simplex Push Button Lever Lock Best IC Prep

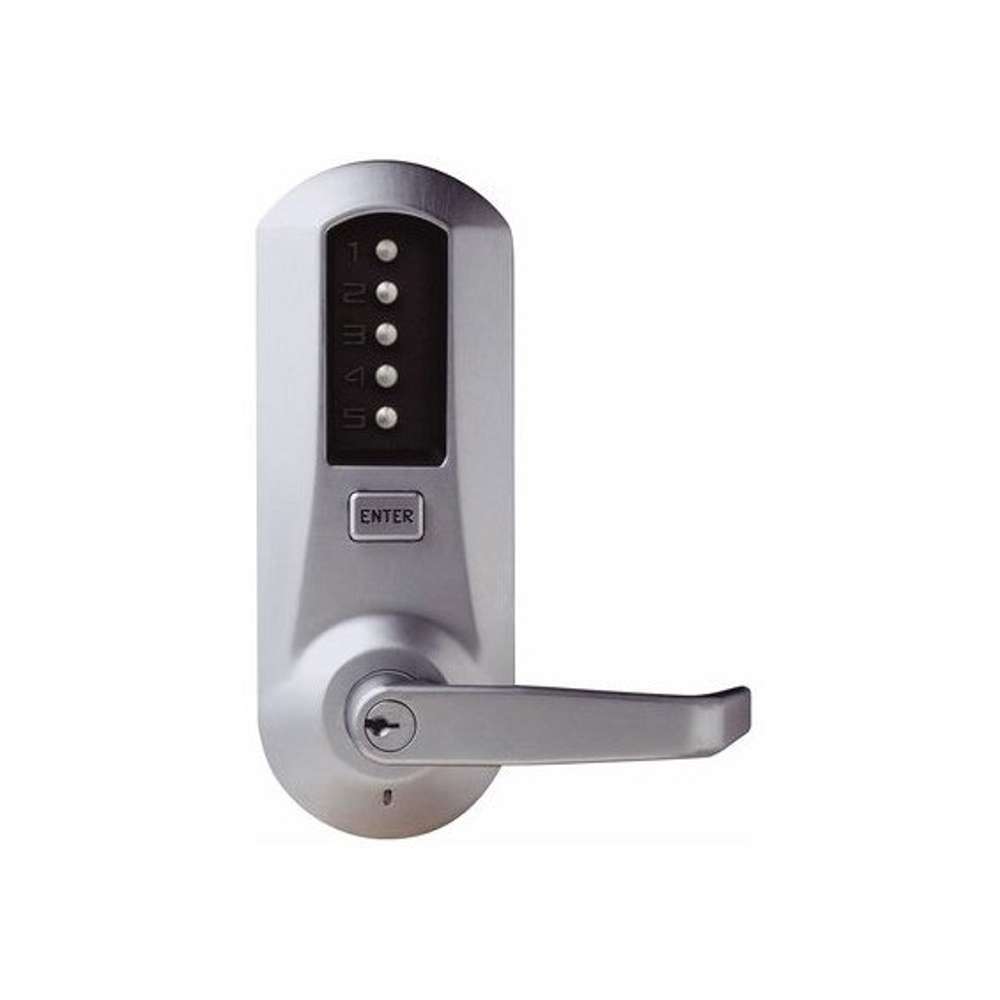

Simplex 5000 Series Combination Entry Extra Heavy Duty Pushbutton Lock
5000 Series Pushbutton Lock by Simplex / Unican
Simplex Mechanical Pushbutton Locks eliminate problems and costs associated with issuing, controlling, and collecting keys and cards.
The most full featured of Kaba's mechanical pushbutton lock solutions, the Simplex 5000 Series offers unparalleled strength, convenience, and flexibilty. This BHMA Grade 1, heavy-duty lock contains internal drive parts of cast stainless steel and clutch-free direct-driver design. The Enter Button is easy to press, and its design and finish options fit virtually any existing dècor. Designed for the simplest installation possible, the non-handed design fits both left-and right-hand doors and if needed, allows for handing changes in seconds. Models are available for cylindrical, exit trim, and mortise locking options and include a choice of key override options. Simplex 5000 locks are ADA compliant and include a three-year warranty.
The Simplex 5000 locks are ideal for locations with a high personnel turnover rate such as date processing centers, employee entrances, R&D labs, apartments, dormitories and restricted areas in hospitals, airports and other institutions.
Access Control: Mechanical pushbutton lock eliminates problems and costs associated with issuing, controlling, and collecting keys and cards. Provides exterior access by combination, while allowing free egress.
No Battery: Fully mechanical lock eliminates the material and labor expense of battery replacements.
Locking Device: Cylindrical latch with 3-hour UL/ULC fire rating on "A" labeled doors.
Number of Codes: Single access code - one easy-to-manage code for all users.
Programming: Lock is easily programmed via keypad without removing lock from the door.
Handing: Factory-handed for left-hand doors; easily field reversible.
Number Keypad: Vandal resistant, 5-button, plus "Enter" button.
Economical: A cost effective access control solution.
Passage Mode (5041) - allows access without using the lock entry mode. Feature activated from the inside with a thumbturn or key (included with all passage feature models).
Door Thickness: 1-3/8" to 2-1/4".
Strike: Standard strike plate, ASA strike plate.
Backset: 2-3/4" backset. Finish: Satin Chrome 26D (626).
Minimum Stile Requirement: 5".

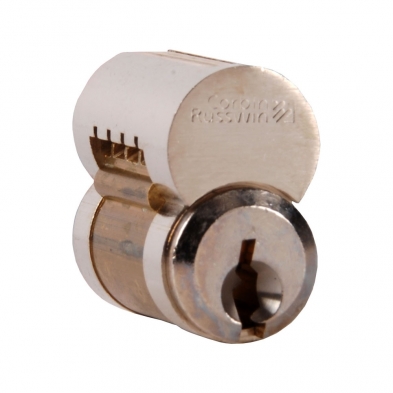

Key Override (Optional): Key Override models (5021, 5031 & 5041) accept removable core cylinders.
** All Simplex Key Override models are sold Less Cylinder.**
Operation Modes:
- 5021XS - Extra Heavy-Duty Combination Door Lock with Key Override: Comes with a standard (Non-IC Core) Schlage "SC1" Cylinder installed, Keyed Different (Random).
- 5021 - Extra Heavy-Duty Combination Door Lock with Key Override. Choose Keyway: Schlage (5021S), Best (5021B), Corbin Russwin (5021C), Sargent (5021R), and Medeco-Yale (5021M).
- 5031 - Combination Entry and Key Override: Combination Entrance Combination Change from secure (interior) side of door. Meets Department of Defense (DOD) Requirements. Choose Keyway: Schlage (5031S), Best (5031B), Corbin Russwin (5031C), Sargent (5031R), and Medeco-Yale (5031M).
- 5041 - Combination Entry, Key Override, and Passage: Auto-locking with pass-thru feature. Combination Entrance Combination Chnage from secure (interior) side of door. Meets Department of Defense (DOD) Requirements. Choose Keyway: Schlage (5041S), Best (5041B), Corbin Russwin (5041C), Sargent (5041R), and Medeco-Yale (5041M).
Special Order Information: For pricing on any function, keyway or finish of the Simplex 5000 Series not found on this page please contact Taylor Security direct via e-mail (sales@taylorsecurity.com) or call us toll-free at 1-800-676-7670.
