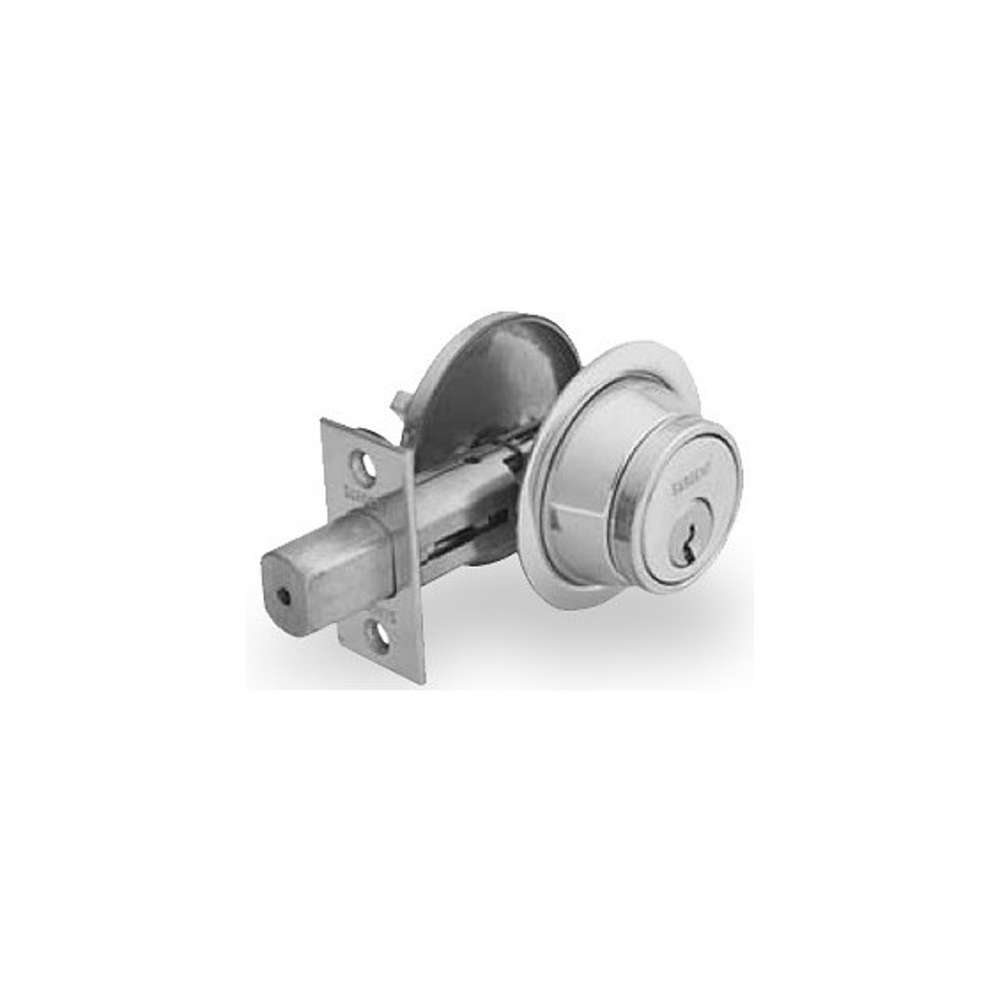

Sargent Commercial 470 Series Grade 2 Deadbolt
470 Series Deadbolt by Sargent Commercial
The Sargent 470 Series is a medium grade cylindrical deadbolt which meets Grade 2 ANSI 156.5 1000 series specifications.
Function: The Sargent 470 Series Deadbolt is available in Single Cylinder (475) and Double Cylinder (474) function.
Finish: The Sargent 470 Series Deadbolt comes in Brass (605) and Satin Chrome (626) finish.
Cylinder: The 470 Series comes with a standard 6-Pin Cylinder, Sargent LA Keyway, Keyed Different (Random). See "Keying Options" for other keying choices.
Door Range: 1-3/4" - 2-3/8" (44mm - 61mm).
Backset: Dual Backset Latch; adjustable for 2-3/8" or 2-3/4" backset.
Latch: 5/8" (16mm) x 13/16" (21mm) x 1" (25mm) throw.
Strike: 406 Strike Supplied Standard.
