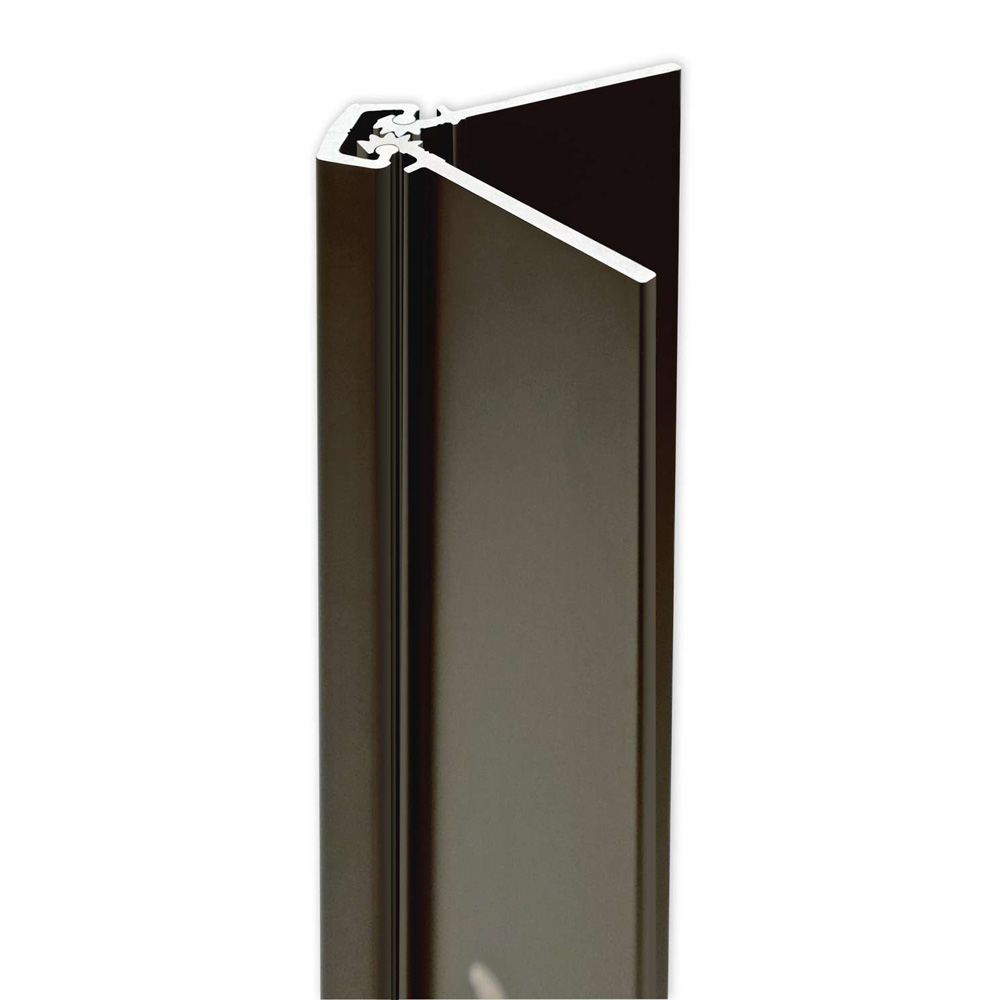

Select Hinges SL11 HD 83" Bronze Concealed Hinge
Flush mounted (no door inset). For 1-3/4" doors. All SL11 geared continuous hinges are BHMA Grade 1 certified.
SELECT Hinge Performance
SELECT SL11 geared continuous hinges are listed and tested by Underwriters Laboratories to meet the Positive and Negative pressure requirements of UL10B and UL10C, and are in accordance with UBC 7.2 (1997). SELECT SL11 geared continuous hinges are for use on swinging single fire doors (max. door opening of 4'x10') or pairs of fire doors (max. door opening of 8'x10'), including double egress, installed in masonry or drywall. SELECT SL11 geared continuous hinges are rated for up to 1-1/2 hours for wood composite and wood core type fire doors. A special patented process can be added to increase the fire rating to 3 hours (NO FIRE PINS OR STUDS REQUIRED) for hollow metal or steel covered composite type doors.
Material: Extruded 6063 T6 aluminum alloy with self-lubricating polyester thrust bearings.
Lengths: 83", 85", 95", and 120" lengths standard for nominal door heights.
Finish: All SL11 hinges are stocked clear and Dark Bronze anodized aluminum.
Load Frequency Ratings: For 1-3/4" doors. 48" max. door width in 16 gauge hollow metal (min.) or 1/8" aluminum (min.).
Standard Duty (SD) - Tested per BHMA standards for medium-frequency doors up to 200 lb. without frame or door reinforcement.
Heavy Duty (HD) - Tested per BHMA standards. Up to 200 lb. doors (high-frequency) and up to 400 lb. doors (medium-frequency) without frame or door enforcement; up to 600 lb. doors (low-frequency) with the use of Rivnuts in the frame.
SL11 Hinge Screw Count
SELECT Advantages
Pair-Matched Hinge Leaves
Manufactured together, machined together and anodized together, making SELECT hinges fit your doors better and last longer. An exclusive SELECT benefit.
Lifetime Lubrication
Eliminates the need for periodic maintenance. Quiet performance. Fights gear cap wear. An exclusive SELECT benefit.
Anodized After Machining
Delivers superior wear, durability and life. Inhibits corrosion. Few hinge makers follow SELECT's lead in using this superior manufacturing process.
Meets Leed Requirements
Made from recycled aluminum. Reduces environmental impact and qualifies for LEED points. An exclusive SELECT benefit.
Patented 3-Hr. Fire Rating
Most SELECT hinges are fired rated for 90 minutes. 3-Hr. fire rating, optional at extra cost, approved for positive/negative pressure. No fire pins or studs required. Patented design innovation. An exclusive SELECT benefit.
Consistent Templating
Hole pattern is identical on both Standard and Heavy Duty models, so SELECT hinges line up precisely for easier and faster installation. An exclusive SELECT benefit.
Coated Fasteners
Provide additional corrosion protection with either self-drilling, threat-forming (SDTF) or threat-forming (TF) screws. An exclusive SELECT benefit.
Special Orders: For pricing on any SELECT Hinges not on this page please contact Taylor via e-mail (sales@taylorsecurity.com) or call 1-800-676-7670.
