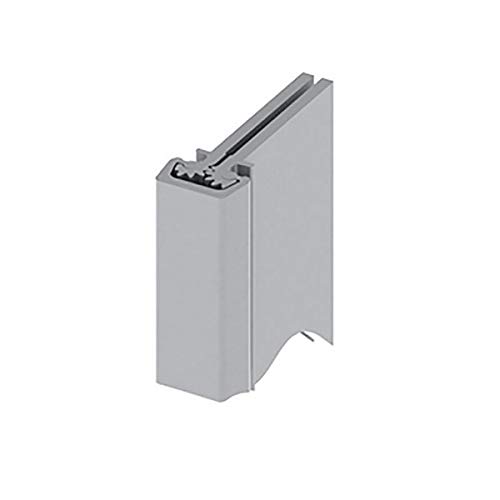

Hager 780-112HD-83-DBA Concealed Leaf Continuous Hinge

The Hager 780-112HD-83-DBA Concealed Leaf Continuous Hinge is a Concealed Leaf Continuous Hinge.

 Specifications include:

• Heavy Duty
• Concealed Leaf Hinge
• 780 Series
• Dark Bronze Exterior Anodized Coating
• Application: - Frame and door leaf alignment ribs for proper hinge and door location
• Length 83 inches (2108 mm)
• Clearance: - 5/16" (8 mm) hinge side - Plus standard lockside clearance
• Fasteners: - #12-24 X 11/16" Flat Head Self-Drill Screws
• Door Reinforcement: - None required to 200 lbs. Heavier weight use 16-gauge channel.
• Frame Reinforcement: - None required to 200 lbs. Heavier weight use 16-gauge channel.
• Fire Rating: - Up to 3 hr. metal and 90 min. wood composite (with studs).
• Material: - Aluminum 6063-T6
