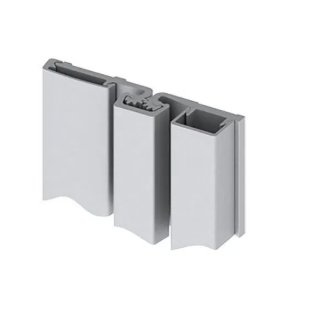

Hager 780-157-83-DBA Full Surface Continuous Geared Hinge

SKU # HG/780-157-83-DBA

The Hager 780-157-83-DBA Full Surface Continuous Geared Hinge is a Full Surface Continuous Geared Hinge.

 Specifications include:

  • Standard Duty
  • Full Surface Continuous Geared Hinge
  • 780 Series
  • DBA - Dark Bronze Exterior Anodized Coating
  • Application:  - For surface applications where frame face dimension is limited
  •         - Security moldings
  •         - 1/16" (1.5 mm) inset
  • Length 83 inches (2108 mm)
  • Clearance: - 1/32" (1 mm) minimum recommended for hinge side - Plus standard lockside clearance
  • Fasteners: - 1/4-20 x 1-1/4" Sexbolt (Screw + Post) - #12-24 X 11/16" Flat Head Self-Drill Screws
  • Door Reinforcement: - None required
  • Fire Rating: - Up to 3 hr. metal and 90 min. wood composite (with studs).
  • Material: - Aluminum 6063-T6
US$207.49
