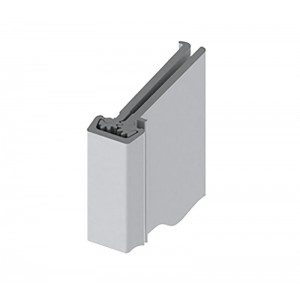

Hager 780-224HD-95-CLR Concealed Leaf Continuous Hinge

The Hager 780-224HD-95-CLR Concealed Leaf Continuous Hinge is a Concealed Leaf Continuous Hinge.

 Specifications include:

• Heavy Duty
• Concealed Leaf Continuous Hinge
• 780 Series
• CLR - Clear Anodized Satin Aluminum
• Application:  - Door edge protection lip
                       - Frame leaf alignment rib for proper hinge and door location
                       - 3/32" (2 mm) inset
• Length 95 inches (2413 mm)
• Certifications: - Conforms to ANSI A156.26 for A31011G
• Clearance: - 5/16" (8 mm) hinge side
•                   - Plus standard lockside clearance
• Fasteners: - - #12-24 X 11/16" Flat Head Self-Drill Screws
• Door Reinforcement: - None required to 200 lbs. Heavier weigh use 16-gauge channel.
• Frame Reinforcement: - None required to 200 lbs. Heavier weigh use 16-gauge channel.
• Fire Rating: - Up to 3 hr. metal and 90 min. wood composite (with studs).
• Material: - Aluminum 6063-T6
