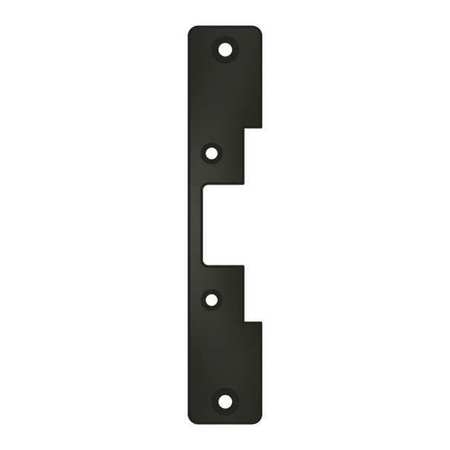

HES 503-613 Faceplate

SKU # HE/503-613

Read Review(s) | Log in to Review

The HES 503-613 Faceplate is a Faceplate for the 5000 series.

Features include:

  • 503  (6-7/8" x 1-1/4", radius corners & flat faceplate)
  • For use with cylindrical locksets.
  • Includes universal mounting tabs.
  • ANSI/BHMA Numbers: #E09321, #E09322, #E09323
  • Bronze toned
US$38.50

Description:

Description:

Application

  • Adjustability : None
  • Surface Mounting : Cutting required
  • Frame Material : Metal|Wood
  • Shim Type : NA
  • Latchbolt Accommodation : 1/2" - 5/8"

Electrical

  • Voltage : 12/24
  • Monitoring Installation : Factory Configured
  • Monitoring Options : Latchbolt Monitoring

Strength & Durability

  • Endurance (cycles) : 1,000,000
  • Dynamic Strength (ft-lbs) : 70
  • Tamper Resistant : Yes
  • Fail Safe | Fail Secure : Field selectable fail safe/fail secure
  • Grade : Grade 1

General Specifications

  • Warranty : SecuriCare five-year, no fault, no questions asked warranty
  • Lock Type : Cylindrical Lock

Weights & Dimensions

  • Strike Body Depth (in) : 1 11/16
  • Strike Body Height (in) : 4 7/8

Certifications

  • ANSI/BHMA A156.31, Grade 1
  • RoHS Compliant
  • UL 1034 burglary-resistant listed
  • UL294 Listed

Specifications:

Specifications:

Click Here for HES Strike Compatibility Chart

Literature:

Literature:

Click Here for HES Electric Strike Overview

Product Videos:

Product Videos:

Reviews

Reviews

There is no review yet for this item.
