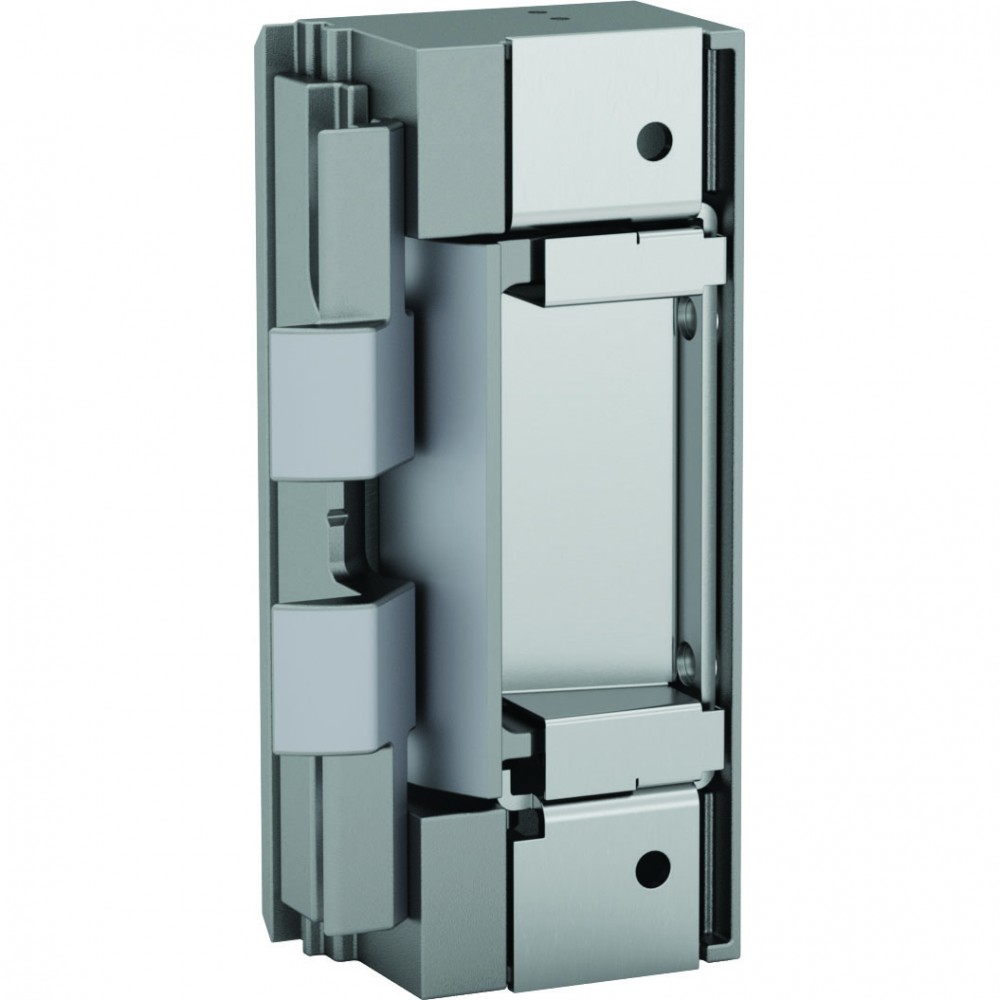

HES Electric Strike, 12/24 AC/VDC, Fail Safe/Fail Sec

SKU # HE/8000-630

Read Review(s) | Log in to Review

HES Electric Strike, 12/24 AC/VDC, Fail Safe/Fail Sec
This electric strike is a compact strike for cylindrical locksets. It features a unique concealed design and is simple to install without requiring cutting of the frame. Just remove the existing strike from the frame, adjust the horizontal alignment feature to the centerline of the latchbolt and install. Vertical adjustment is possible for doors with door sag or misalignment.
  • ANSI/BHMA A156.31, Grade 1
  • UL 1034, burglary-resistant listed
  • UL rated - suitable for outdoor use
  • Endurance rating 500,000 cycles
  • 5 year limited warranty
US$133.65
HES

You may also like

Description:

Description:

HES Electric Strike, 12/24 AC/VDC, Fail Safe/Fail Sec

8000 Series Electric Strikes
The HES 8000 Series is a compact, high-performance electric strike featuring a unique concealed design for use with cylindrical locksets.
No cutting on the frame is required. Simply remove the existing strike plate, adjust the vertical alignment feature to the latchbolt centerline, and install. Its strength is derived from a unique keeper pin locking design, enabling the 8000 to exceed the ratings of the frame, door and locking hardware. This field selectable fail secure/fail safe unit is easy to install and accommodates latchbolts up to 5/8" throw.

Frame application

  • Metal
  • Wood

Electrical

  • .24 Amps at 12 VDC/VAC
  • .12 Amps at 24 VDC/VAC
  • DC continuous duty/AC intermittent duty only
  • Standard Features
  • No cutting on frame required
  • Vertical adjustability to accommodate door sag and misalignment
  • Tamper resistant
  • Static strength 1,500 lbs.
  • Dynamic strength 70 ft-lbs.
  • Endurance 500,000 cycles
  • Field selectable fail safe/fail secure
  • Dual voltage 12 or 24 VDC/VAC
  • Non-handed
  • Internally mounted solenoid
  • Accommodates 1/2"-5/8" cylindrical latchbolt (5/8" with 1/8" door gap)
  • Strike body depth 1-1/16"
  • Strike body width decreased to 1-7/16" to increase frame compatibility
  • Five year limited warranty

Optional Features

  • LBM - Latchbolt monitor

Specifications:

Specifications:

Click Here for HES Strike Compatibility Chart

  • UL 1034, burglaryresistant listed and suitable for outdoor use
  • ANSI/BHMA A156.31, Grade 1

Frame Application

  • Metal
  • Wood

Electrical

  • .24 Amps @ 12VDC/VAC
  • .12 Amps @ 24VDC/VAC
  • DC continuous duty/ AC intermittent duty only

Literature:

Literature:

Click Here for HES Electric Strike Overview

Product Videos:

Product Videos:

Reviews

Reviews

There is no review yet for this item.
