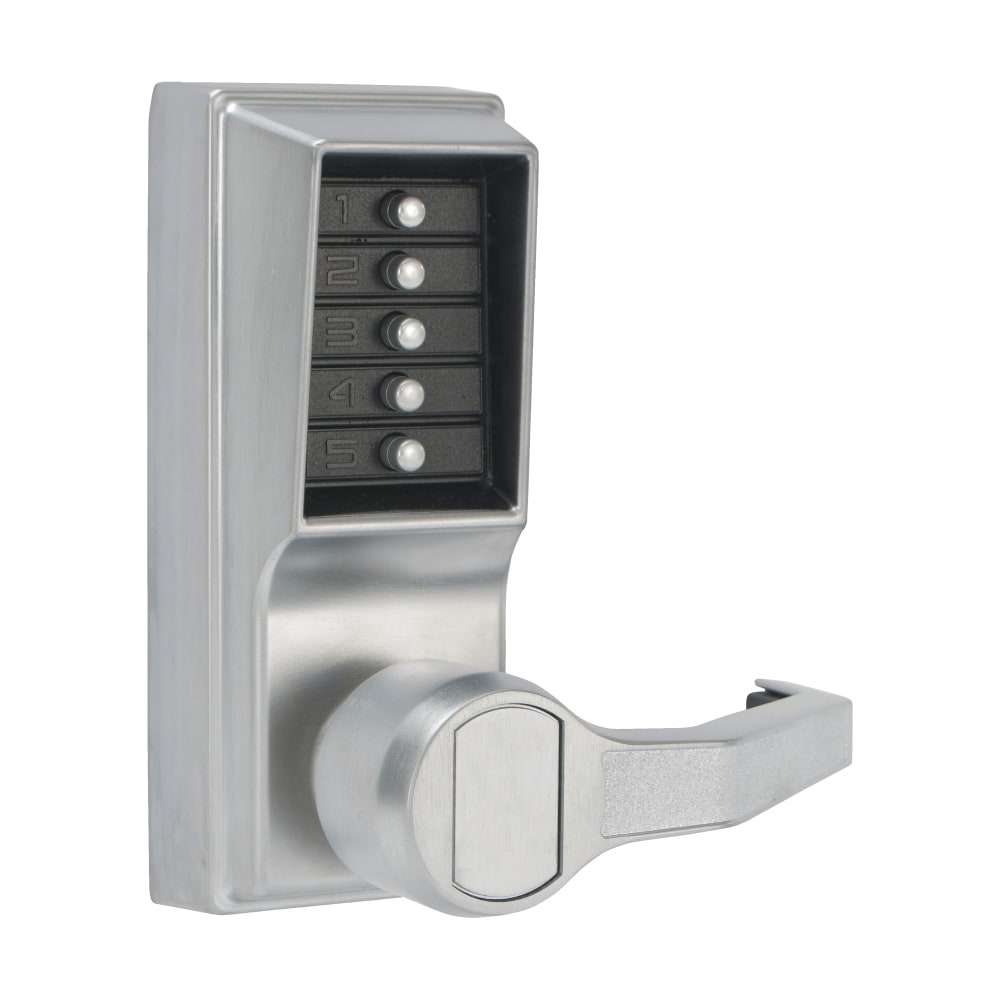

Kaba Access LR1031-26D-41 Cylindrical Lever Lock
Simplex Mechanical Pushbutton Locks eliminate problems and costs associated with issuing, controlling, and collecting keys and cards. The Simplex L1000 Series provides exterior access by combination, while allowing free egress. This mechanical lock, with lever option, eliminates the material and labor expense of battery replacements, has a single access-code and is programmed via the keypad without removing the lock from the door.
Construction Heavy-duty cylindrical lock housing with cast front housing, unified trim plate, and fixed
ADA-compliant levers
Locking Device Cylindrical latch with 3-hour UL/ULC fire rating on “A” labeled doors
Numeric Keypad Vandal resistant, solid metal pushbuttons
Handing Factory-handed; not field reversible
Standard Finishes Satin Chrome 26D (626), Antique Brass 05 (609)
Optional Finishes Bright Brass 03 (605), Bright Chrome 026 (625)
Backset 2 ¾" (70 mm), 2 ⅜" (60 mm)
Latch ½" (13 mm) throw latch, ¾" (19 mm) throw latch (optional)
Minimum Stile Recommended 5" (127 mm)
Weight 8.25 lbs. (3.7 kg)
Strike Standard strike plate; ASA strike plate
