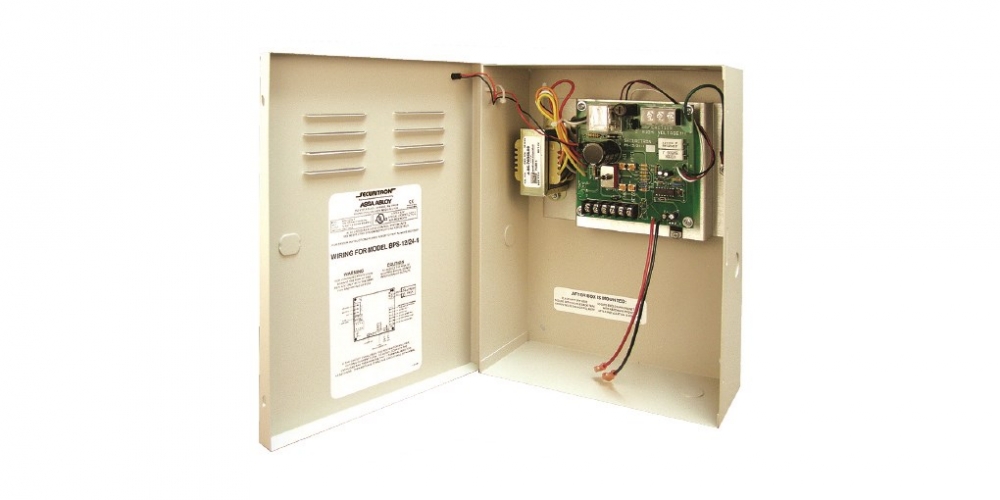

Securitron Dual Voltage Power Supply - 12/24VDC, 1A

SKU # SO/BPS-12-24-1

Read Review(s) | Log in to Review

Product Features:

Dual output, field selectable 12 or 24VDC via clearly marked toggle switch
Supplies 1 full AMP continuous current output, even while charging back-up batteries
SPDT AC monitoring output allows for remote monitoring of the power supply's 110VAC input
Separate voltage inputs for load and battery allow the batteries to charge at a higher output while the load remains at exactly 12 or 24VDC
LED indication (AC and DC) showing power supply status
UL Listed low current fire alarm disconnect requires only a minimum size fire alarm relay and wire gauge
Polyswitch 2A breaker allows for large short duration inrush current if batteries are installed (approximately 20A for 1 second)
Line voltage and DC fuses
Sealed lead acid-gel battery charging capability (battery not included)
UL Class 2, linear regulated power supply provides the cleanest power available sensitive, active safety and security devices
UL Listed

US$278.73

Qty:

Description:

Securitron Dual Voltage Power Supply - 12/24VDC, 1A

The Securitron Dual Voltage Power Supply is a versatile unit that offers the ability to switch between 12VDC and 24VDC outputs, delivering 1 Amp of power. This flexibility makes it an ideal choice for a variety of access control and security system applications where different voltage requirements might be necessary.

Key Features:

Dual Voltage Output: Capable of providing either 12VDC or 24VDC at 1 Amp, allowing it to power a wide range of devices.
Linear Power Supply: The linear technology ensures a clean and stable power output, which is crucial for the proper functioning of sensitive electronic components such as electric strikes, maglocks, and card readers.
Battery Backup Capability: The unit supports battery backup (batteries sold separately), ensuring that connected devices remain operational during power outages.
Fire Alarm Interface: Equipped with a relay for interfacing with fire alarm systems, this power supply can release all connected devices when the fire alarm is triggered, enhancing safety.
UL Listed: The unit is UL Class 2 Listed, meeting stringent safety standards and allowing for safe installation and operation.

This power supply is particularly useful in environments where flexibility and safety are paramount, such as commercial buildings, healthcare facilities, and government offices.
