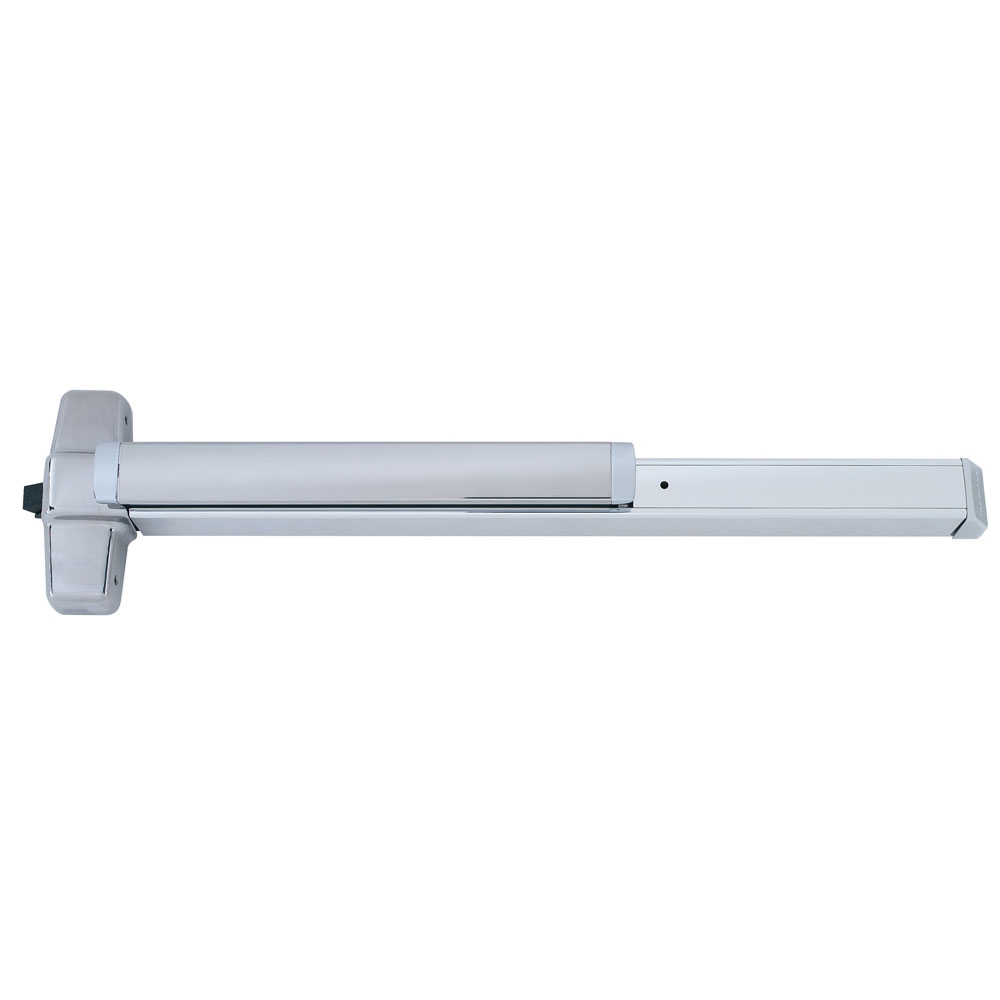

Von Duprin 98EO-26D Rim Exit Device, Exit Only
The 98/99 Series devices are wide stile heavy-duty push pads. The 98/99 Series have all been certified to the highest industry standards and are commonly used in higher education, K-12 schools, hospitals, hospitality, and government buildings among others, Modular design allows ability to upgrade device to keep up with changing technology and meet a facility's changing needs.
The 98 device has a smooth mechanism case and the 99 device has a grooved case.
Specifications:
Device lengths:
- 3' Device, 2'4' to 3' (711mm to 914mm) Door size
- 4' Device, 2'10" to 4' (864mm to 1219mm) Door size
Device centerline from finished floor:
- 39 13⁄16" (1011mm)
- 39 11⁄16" (1008mm) with mullion
Center case:
- 8" x 2 3⁄4" x2 3⁄8" (203mm x 70mm x 60mm)
Mechanism case:
- 2 1⁄4" x 2 1⁄4" (57mm x 57mm)
Latch Bolt:
3/4" (19mm) throw latch bolt
Strike:
- Device is furnished with standard 299 strike in dull black finish
Dogging:
- Hex key dogging Comes standard on 98/99 exit devices
Projection:
- Pushbar neutral - 3 13/16" (97mm)
- Pushbar depressed - 3 1/16" (78mm)
Latch bolt Deadlocking:
- 3⁄4" (19mm) throw
Handing:
- Non handed
Finishes:
- 605, 606, 612, 625, 626/626AM, 628, 710, 711 & 643e (619 and 630 available with 98 Series only)
Fasteners and sex bolts (SNB):
- Includes screw pack for 1 3⁄4" (44mm) and 2 1⁄4" (57mm) thick metal or wood doors (Optional 425 SNB available)
More Info
- No Mechanical Dogging
- Latch Bolt-Deadlocking 3/4“ throw
- Non-handed except when the following device options are used:
- SD (Special Dogging), -2 (Double Cylinder) or SS (Signal Switch)
- UL listed for Panic Exit
- ANSI A156.3 – 2001 Grade 1.
- Device Centerline from Finished Floor – 39-13/16”, 39-11/16” with mullion
