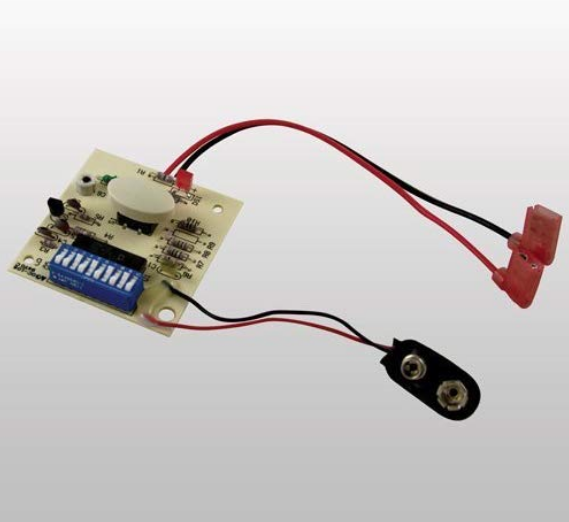

North Shore Commercial Door now has the BEA 300 MHz frequency analog radio control series of transmitters/receivers ready to ship. The 10T300PB is a 300 MHz frequency hard-wired, analog transmitter with 1-button and flag connectors.
The 300 MHz frequency analog radio control series of transmitters and receivers are universally compatible with any type of automatic door application. The 300 MHz series from BEA has the ability to support up to seven transmitters per receiver. It's an easy-to-install alternative and makes adding new transmitters simple. Hand-held transmitters are outfitted with flag connectors that plug directly into most of BEA's push plate switches. Analog radio control provides strong, short-range transmissions. Transmitters are programmed to the receiver through DIP switch settings which offer up to 1,024 unique identifer
Technical Information:
Frequency: 300 MHz
Radio Control Type: Analog
Emitted Radio Power: N/A
Power Consumption: N/A
Input Voltage: 24 V AC/DC
Operating Temperature: +14˚ F to +131˚ F (-10˚ C to 55˚ C)
Setup: 10 position access code dip switch
Power:
Hardwired: 1 9-volt or 12-volt battery
Wireless: 1 9-volt or 12-volt battery
Max. Transmitters Per Receiver: 7
Norm Conformance: CE, FCC, IC
Receiver Dimensions (L x W x H):
Without Flange: 4.9 in x 3.2 in x 1.4 in
With Flange: 5.4 in x 3.2 in x 1.4 in
