RCI FB-713-28 Filler Bar

SKU # RU/FB-713-28

Read Review(s) | Log in to Review

The (FB) Filler Bars are part of RCI

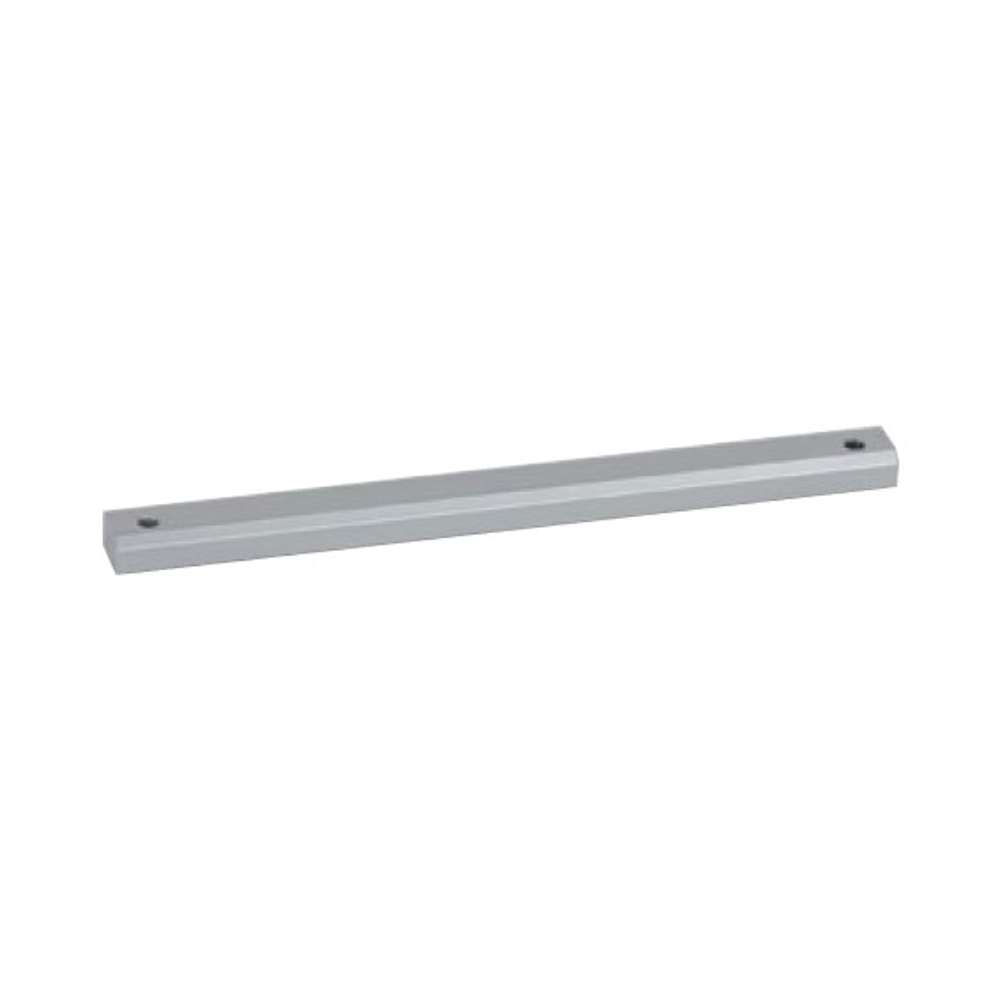

RCI (Rutherford) FB-Filler Bar - 5/8"H x 3/4"W x 18-3/4"L

Brushed Anodized Aluminum (28) or Brushed Anodized Dark Bronze (40).

  • For frame stops narrower than 2" (51mm).
  • Compatible With 8372 electromagnetic lock

Model: FB-723-28, FB723-28, FB-723-40, FB723-40

US$32.40

Description:

Description:

RCI FB-713-28 Filler Bar

Filler Bars
For frame stops narrower than 2" (51mm).
Available in Brushed Anodized Aluminum (28) or Brushed Anodized Dark Bronze (40). Please specify when ordering.

The MultiMag series of electromagnetic locks are designed for easy installation and multi-purpose operation for interior or perimeter doors. The mounting bracket has keyhole mounting to support the magnet, freeing the installer's hands to affix the magnet mounting screws. The removable cavity cover offers quick, easy access to wiring. The RCI 8310 MultiMag applies to single outswinging doors, while the RCI 8320 MultiMag is for double outswinging doors. For additional security monitoring these electromagnetic locks offer optional door status & security condition sensors.

The Surface MiniMag locks are designed with a 1-7/8” width to keep undersized openings within code. These locks are ideal solutions for traffic control on narrow-style interior or perimeter doors. The RCI 8371 Surface MiniMag is for single outswinging doors. The RCI 8372 Surface MiniMag is used for double outswinging doors without mullions. These electromagnetic locks install perfectly alongside most automatic door operators or stop-mounted door hardware. They reduce installation time and eliminate the need for extra brackets.

  • FB-710 1/4"H x 3/4"W x 9-3/8"L 28/40 for 8371
  • FB-711 3/8"H x 3/4"W x 9-3/8"L 28/40 for 8371
  • FB-712 1/2"H x 3/4"W x 9-3/8"L 28/40 for 8371
  • FB-713 5/8"H x 3/4"W x 9-3/8"L 28/40 for 8371
  • FB-720 1/4"H x 3/4"W x 18-3/4"L 28/40 for 8372
  • FB-721 3/8"H x 3/4"W x 18-3/4"L 28/40 for 8372
  • FB-722 1/2"H x 3/4"W x 18-3/4"L 28/40 for 8372
  • FB-723 5/8"H x 3/4"W x 18-3/4"L 28/40 for 8372

Specifications:

Specifications:

Click Here for RCI Electromagnetic Accessory Product Sheet

Literature:

Literature:

Click Here for Rutherford Controls Product Catalog
