Rutherford AS65 Std Profile Strike 6 Series less Faceplate

SKU # RU/AS65

Rutherford AS65 Std Profile Strike 6 Series less Faceplate

The RCI AS65 modular strike is only for 6 series and this is a standard profile body.

Features and Benefits:

  • Faceplates are not included
  • 12 to 24V AC and 12 to 24V DC
  • UL Listed for 1500 lbs static strength
US$139.20

Description:

Description:

Rutherford AS65 Std Profile Strike 6 Series less Faceplate

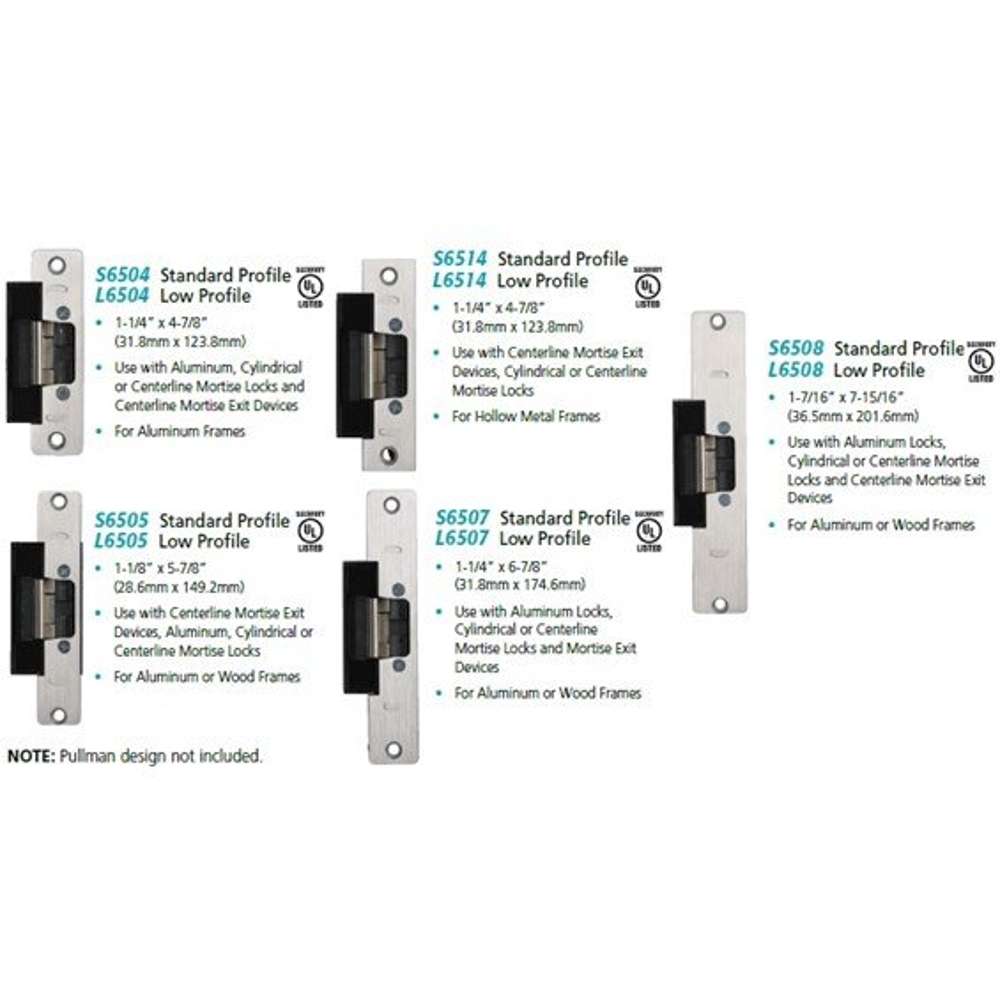

The 6 series centerline strikes are available in standard profile or low-profile options to accommodate different latch projections. This heavy-duty series combines several requested key features. Standard features include a multi-voltage single solenoid, selectable lock mode (no tools necessary), horizontal adjustment, and plug-in wire connectors. ¼" horizontal adjustment makes installations faster and easier. Plus, with the RCI 6 series there will be less pressure on installer's strike inventory, because these RCI strikes do it all.

  • Energy: 375mA Field-Selectable 12/24VDC, 12-24VAC (At 12VDC)
  • Strength: 1,500lbf Static 70ft-lb Dynamic (Grade 1, 04 & 14 faceplates only. Grade 2, 1,000lbf static for 05, 07 & 08 faceplates)
  • Endurance: 500,000 Cycles (Grade 1, 04 & 14 faceplates only. Grade 2, 1,000lbf static for 05, 07 & 08 faceplates)
  • Mode: Field-Selectable Fail-Secure & Fail-Safe
  • Monitoring: Optional Latch & Keeper Monitor Models Available

Specifications:
