RCI F2164-32D Electric Strikes

SKU # RU/F2164-32D

Read Review(s) | Log in to Review

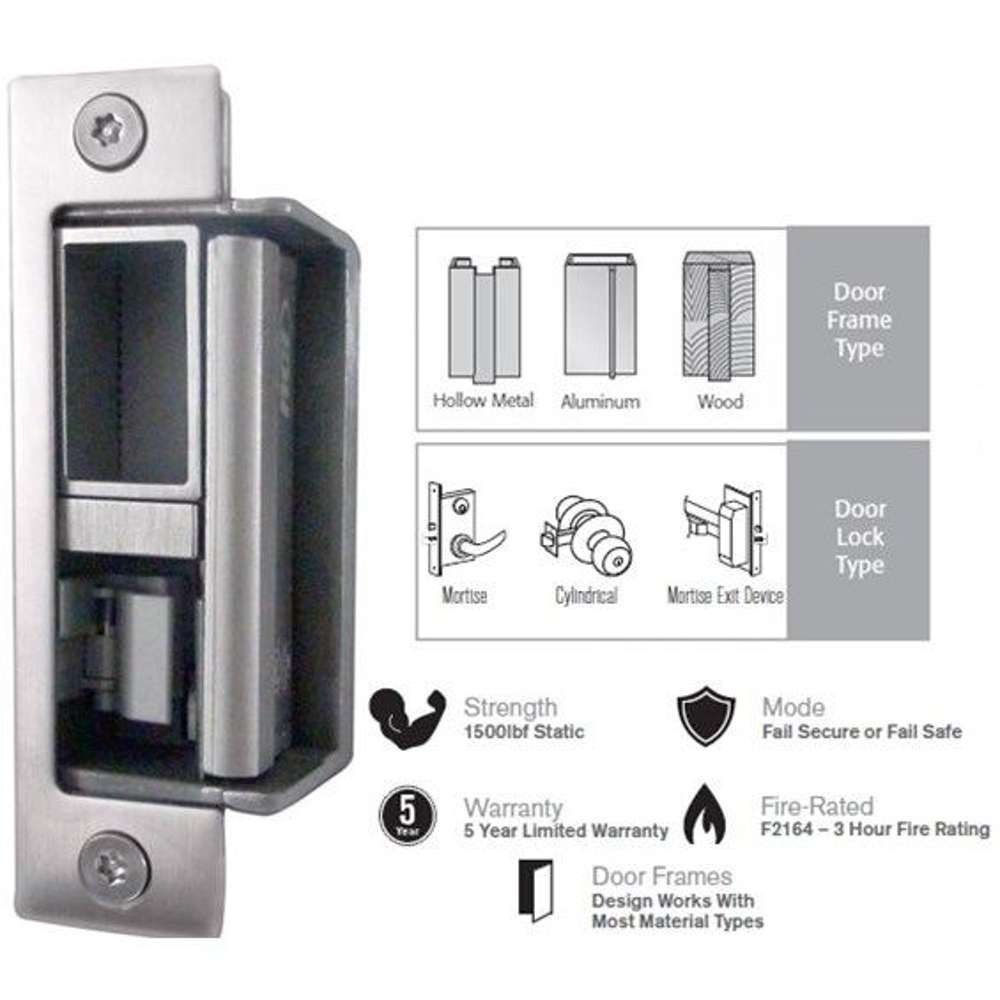

Rutherford F2164 32D Electric Strike

Versatile strike designed to work with most locks
Accommodates 1/2" (12.7mm) to 3/4" (19mm) latch projection
Adjustable deadbolt keeper and deadlatch ramp
Accommodates up to 1" deadbolt (night-latch function only, bolt will not release)
Plug-in wire connectors
Runs cool – solenoid design prevents keeper from heating up
Trim plate included to cover up irregular frame cut-out
Stainless steel ensures superior strength and creates a sleek aesthetic
Includes two keeper shims – 1/16" (1.5mm) and 1/8" (3mm) –for horizontal adjustment for misaligned frames (unique sliding design)
Non-handed
375mA Field-Selectable 12/24VDC, 12-24VAC (Max at 12VDC) (12-24VAC not available with 2364 model)
1,500lbf Static 70ft-lb Dynamic
500,000 Cycles
Fail-Secure & Fail-Safe
Optional 3-Hour Model Available (Fire-rated (F) model only, 3-hour for single swing, 90-minutes for standard pair of doors)
Plug-In Latch Monitor Accessory Available
10 Year Limited Warranty

US$442.20

Qty:

Description:

RCI F2164-32D Electric Strikes

The 2 series are versatile, all-in-one, electric strikes that combine strength and convenience in a sleek design. The RCI F2164 & 2364 strikes feature an adjustable deadbolt keeper and deadlatch ramp allowing them to flexibly work with most locks. The "Saw-tooth Adjustment Locator" makes installation simple. It allows the installer to move the deadbolt keeper, or plug and deadlatch ramp vertically to align with a wide variety of mortise locks with offset latches. It also includes a trim plate to cover up an irregular frame cut-out. Everything you need for the strike is in the box, including a faceplate for centerline latch entry.

Energy: 375mA Field-Selectable 12/24VDC, 12-24VAC (Max at 12VDC) (12-24VAC not available with 2364 model)
Strength: 1,500lbf Static 70ft-lb Dynamic
Endurance: 500,000 Cycles
Mode: Fail-Secure & Fail-Safe
Fire-Rated: Optional 3-Hour Model Available (Fire-rated (F) model only, 3-hour for single swing, 90-minutes for standard pair of doors)
Latch Monitor: Plug-In Latch Monitor Accessory Available
