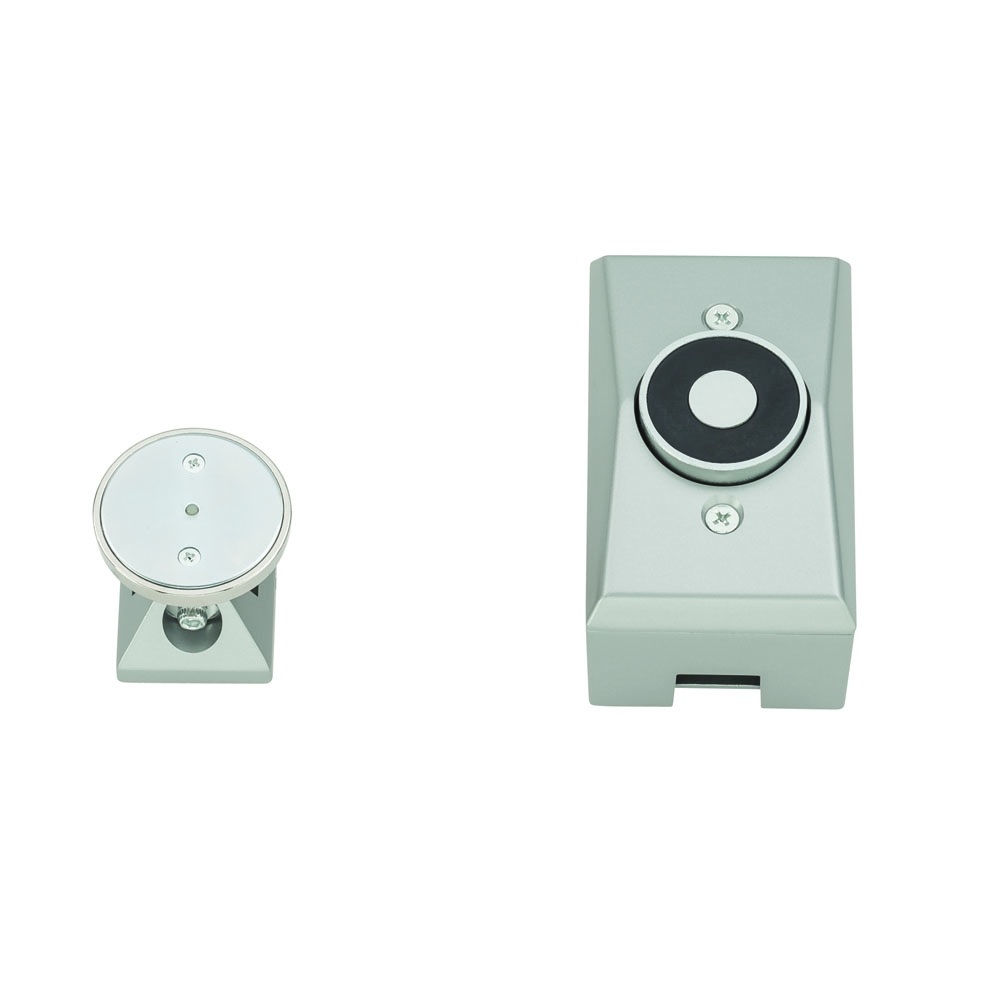

SEM 7830 Wall Mounted Electromagnetic Door Holder by LCN
The Sentronic® SEM 7800 Series are heavy duty, electrically controlled door holding magnets. Magnets are fail safe and hold until the current is interrupted. A manual door closer is used to control and close the door. A choice of floor, recessed wall, or surface mounted wall magnets are available.
All SEM Series magnets are UL listed for smoke barrier or labeled fire doors. Tested and certified under ANSI Standard A156.15.
Features and Benefits:
- Tri-voltage design with 35 lbs. of holding force.
- Surface wall-mounted.
- SEM 7830 magnets are shipped with die cast housing, cover, armature and WMS screw pack.
- Suitable for use in pocket door installations.
- UL listed for smoke barrier or labeled fire doors.
- Available in Aluminum (689) & Dark Bronze (695) finish.
Electrical Data:
Holding Force: 35 lbs @ Nominal Input Voltage.
Maximum Current Draw: .020A @ 24VAC/DC, 120VAC
.030A @ 12VDC
