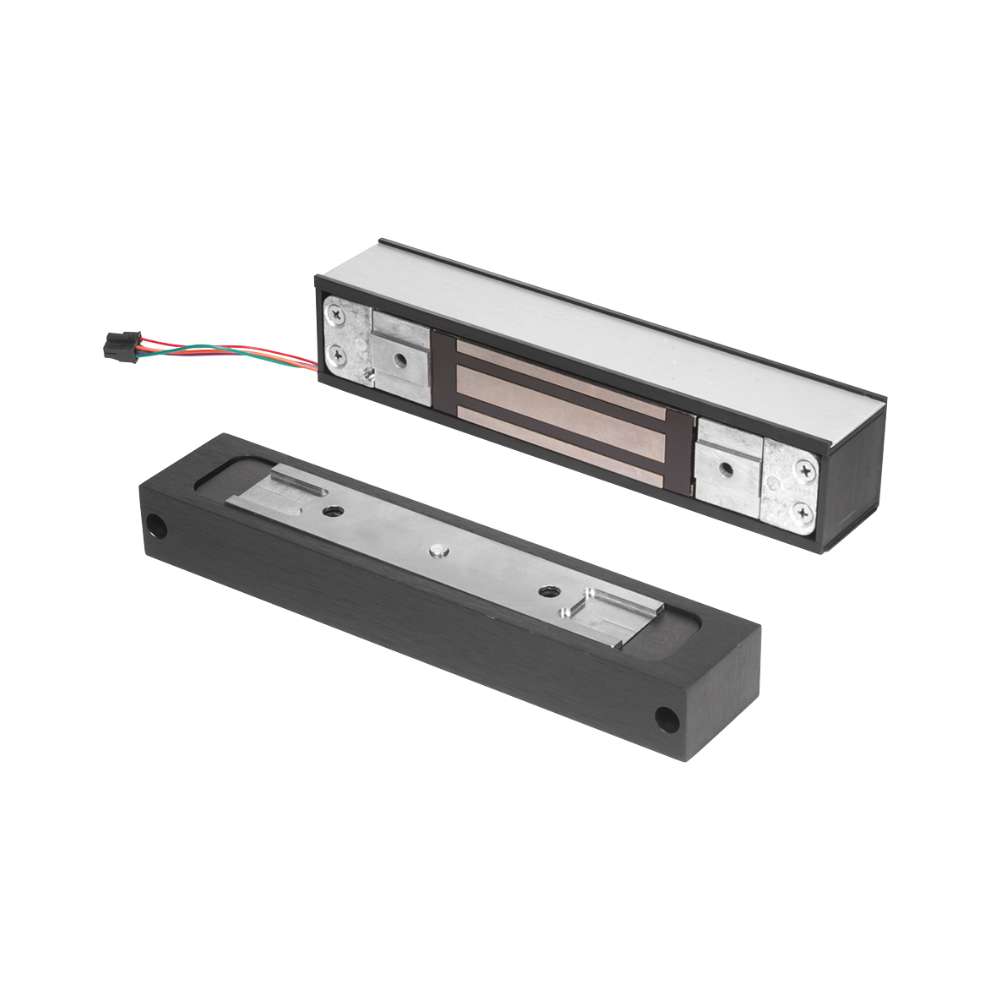

Schlage Electronics GF3000 Mortise Mounted Shear Lock

SKU # LN/GF3000

The Schlage Electronics GF3000 Mortise Mounted Shear Lock is a Mortise Mounted Shear Lock. GF3000 Series shear locks feature a patented design, offering advances over any shear lock in the market. A microprocessor-based control module provides advanced electronic features. This circuitry automatically senses and adjusts input voltage, allowing for operation from 12 to 24 volt DC power sources. These mortise shear locks offer the advantage of a totally concealed locking mechanism, providing superior security and appearance while allowing for normal door movement. The patented design incorporates locking "tabs" on the magnet assembly with mating grooves in the armature plate.

Features include:

  • GF3000 - Standard Model
    • Armature mounts into top of door or top rail and magnet mounts into header or frame.
    • Air gap adjustment is from top edge of door.
    • Vertical mounting of magnet and armature is also an option.
  • 3000 lb. hold force rating
  • Fully concealed shear lock mortise design
  • Automatic voltage selection (AVS) 12/24 VDC (filtered)
  • Built-in automatic relock switch
  • Adjustable time delay on relock, 0-30 seconds
  • Low temperature operation
  • Microprocessor controlled
  • ANSI/BHMA 156.23, UL 10C, cUL, and CSFM certifications
US$991.80

Description:

Description:

Schlage Electronics GF3000 Mortise Mounted Shear Lock

The Schlage Electronics GF3000 Mortise Mounted Shear Lock is a high-security electromagnetic lock designed for maximum security applications. Here are its key features and specifications:

Key Features:

  1. High Holding Force: The GF3000 provides a holding force of 3000 lbs, ensuring robust security.
  2. Advanced Electronics: Equipped with a microprocessor-based control module that offers advanced electronic features such as auto-sensing voltage (12/24 VDC), auto-relocking, and adjustable relock time delay (0-30 seconds).
  3. Flexible Mounting: Features a patented design with locking tabs on the magnet assembly and mating grooves in the armature plate, allowing for some movement and accommodating door and frame shifts.
  4. Optional Features: Includes options for a Magnetic Bond Sensor (MBS) and Door Status Monitor (DSM) to monitor the secure/not secure condition and door open/closed position.
  5. Compliance and Certification: Meets UL 10C positive pressure fire tests, ANSI/BHMA A156.23 Grade 1, cUL, and CSFM standards, ensuring it is suitable for use on fire-labeled openings.

Specifications:

  • Current Draw: 0.90 amp at 12VDC and 0.45 amp at 24VDC.
  • Dimensions: Lock length of 9.5 inches, lock height of 1.5 inches, and lock depth of 1.5 inches.
  • Materials: Anodized aluminum housing for durability and aesthetic compatibility.
  • Operating Temperature: Designed for low-temperature operation, making it suitable for various environmental conditions.

The GF3000 is ideal for use on commercial-grade hollow metal doors, frames, and glass doors with top rails, providing a concealed locking mechanism that enhances both security and appearance. This lock is particularly beneficial in applications where aesthetic and security considerations are paramount, such as in high-security facilities and commercial buildings​
