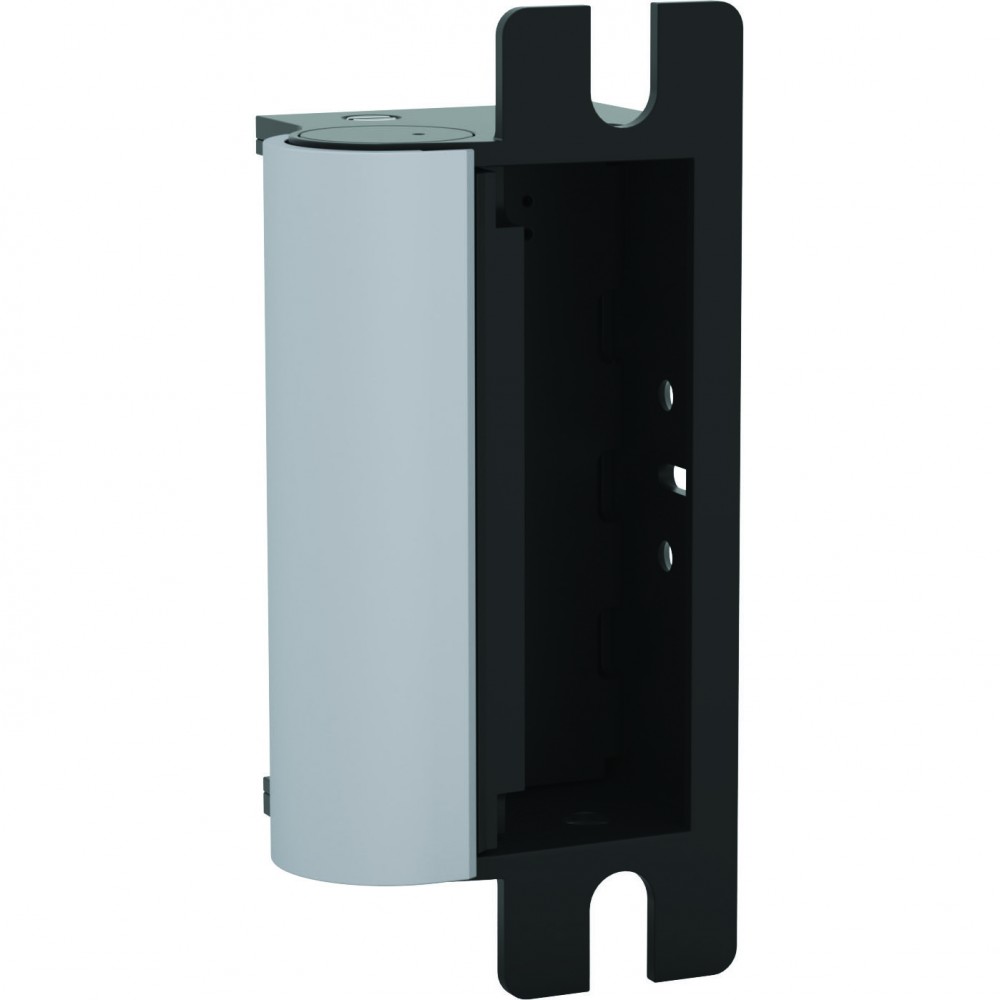

HES Strike 12/24 VDC, Fail Safe

1006 Series Electric Strikes
With multiple faceplate options, the 1006 will fully accommodate every lock designed to work within an ANSI 4-7/8" strike plate.
The 1006 series is the strongest and most versatile electric strike available. The dual interlocking plunger design and heavy duty stainless steel construction, enables it to exceed every standard developed for electric strikes. With multiple faceplate options, the 1006 will fully accommodate every lock designed to work within an ANSI 4-7/8" strike plate. Tested to exceed 3,000 lbs. of static strength, 350 ft-lbs. of dynamic strength and factory tested to exceed 1,000,000 cycles of operation, the 1006 is in a class of its own.

Frame application

• Metal
• Wood

Electrical

• .45 Amps at 12VDC* continuous duty
• .25 Amps at 24VDC* continuous duty
• *Note: DC must be well filtered with ripple less than 1 volt RMS.

Optional Features

• Fail Safe
• LBM - Latchbolt monitor
• LBSM - Latchbolt strike monitor
• 27 interchangeable faceplate options (monitor switches may not work with all faceplate options)

Click Here for HES Strike Compatibility Chart

• UL 10C Fire-Rated, 3 Hour Single Door (Fail Secure Only)
• UL 10C Fire-Rated, 1-1/2 Hour Double Door (Fail Secure Only)
• ANSI A250.13-2003 Windstorm Listed
• UL 1034, Burglary-Resistant Listed
• ANSI/BHMA A156.31, Grade 1
• NFPA-252 Fire Door Conformant
• ASTM-E152 Fire Door Conformant
• MEA New York City Accepted
• Florida Building Code Approved

Click Here for 1006 Electric Strike Sheet
