RCI 8371-DSS-SCS-28 Electromagnetic Locks

SKU # RU/8371-DSS-SCS-28

For Single Outswinging Interior Doors - 750 lbs. Holding Force

8371, 8371 DSS, 8371 SCS, or 8371 DSS/SCS.
Brushed Anodized Aluminum (28) or Brushed Anodized Dark Bronze (40).

8371 Surface MiniMag
9-3/8"W x 1-7/8"H x 1"D (238mm x 48mm x 25mm) – Includes 3/16" (5mm) mounting bracket
Armature Plate: 7-1/4"W x 1-1/2"H x 1/2"D (185mm x 38mm x 13mm)

Stabilizing 4 bolt “drop stop” mounting
Keyhole mounting for ease of installation
Surge protection
Easy-access wiring cavity
Lifetime Limited Warranty
Fail-Safe
Optional Door Status Sensor (DSS)/ Security Condition Sensor (SCS) Available

US$376.20

Qty:

Description:

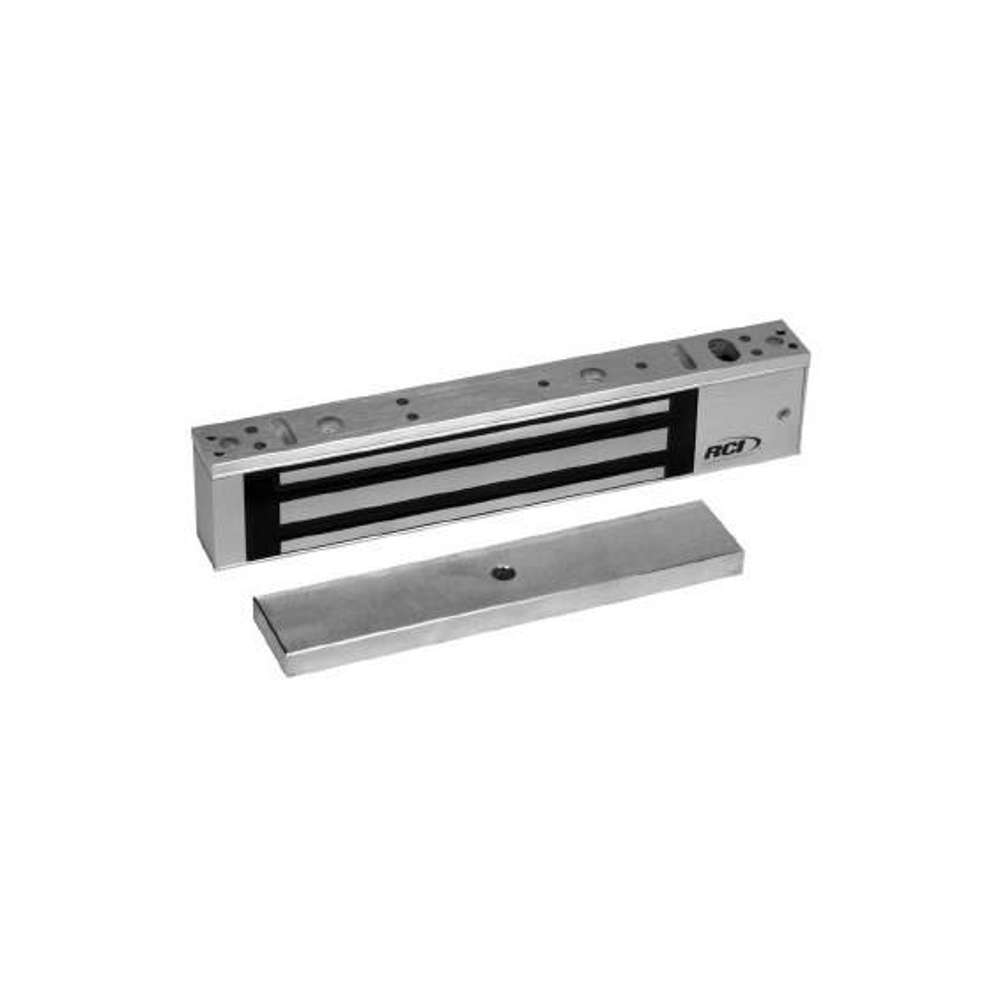

RCI 8371-DSS-SCS-28 Electromagnetic Locks

The Surface MiniMag locks are designed with a 1-7/8” width to keep undersized openings within code. These locks are ideal solutions for traffic control on narrow-style interior or perimeter doors. The RCI 8371 Surface MiniMag is for single outswinging doors. The RCI 8372 Surface MiniMag is used for double outswinging doors without mullions. These electromagnetic locks install perfectly alongside most automatic door operators or stop-mounted door hardware. They reduce installation time and eliminate the need for extra brackets.

Energy: 520mA Field-Selectable 12/24VDC (Max at 12VDC for 8371, 1.04A for 8372)
Strength: Up to 750lbf Holding Force
Monitoring: Optional Door Status Sensor (DSS)/ Security Condition Sensor (SCS) Available
UL 294 Special Locking Arrangement Component
CAN/ULC S104
UL 10C 1-Hour
California State Fire Marshal listed (CSFM: 3774-2275:0500)

8371 Surface MiniMag
9-3/8"W x 1-7/8"H x 1"D (238mm x 48mm x 25mm) – Includes 3/16" (5mm) mounting bracket
Armature Plate: 7-1/4"W x 1-1/2"H x 1/2"D (185mm x 38mm x 13mm)

8372 Surface MiniMag
18-3/4"W x 1-7/8"H x 1"D (476mm x 48mm x 25mm) – Includes 3/16" (5mm) mounting bracket
Armature Plate: 7-1/4"W x 1-1/2"H x 1/2"D (185mm x 38mm x 13mm) each

Shared Technical Information

Designed to overcome residual magnetism
Hardened steel armature nut
Includes 3/8" (9.5mm) armature plate
Available in Brushed Anodized Aluminum (28) or Brushed Anodized Dark
Bronze (40) finish
UL 294 Special Locking Arrangement Component (6th Edition)
UL 10C Auxiliary Locks Listed for fire doors rated up to 1-hour
CAN/ULC S104 Auxiliary Locks Listed for fire doors rated up to 1-hour
California State Fire Marshal Listed (CSFM: 3774-2127:0100)

Angle Brackets
For narrow aluminum frames or center-hung single-acting doors, when inadequate space is left for mounting.
Available in Brushed Anodized Aluminum (28) or Brushed Anodized Dark Bronze (40). Please specify when ordering.

AB-710 1"H x 1"W x 9-3/8"L 28/40 for 8371
AB-711 1-1/2"H x 1"W x 9-3/8"L 28/40 for 8371
AB-712 1-1/2"H x 1-1/2"W x 9-3/8"L 28/40 for 8371
AB-713 1-1/2"H x 2"W x 9-3/8"L 28/40 for 8371
AB-720 1"H x 1"W x 18-3/4"L 28/40 for 8372
AB-721 1-1/2"H x 1"W x 18-3/4"L 28/40 for 8372
AB-722 1-1/2"H x 1-1/2"W x 18-3/4"L 28/40 for 8372
AB-723 1-1/2"H x 2"W x 18-3/4"L 28/40 for 8372

Armature Bolts

Compatible With: 8371

ARMB155 2-1/8" (55mm) For doors 1-3/4"-2-1/4" (44-57mm) thick
ARMB170 2-3/4" (70mm) For doors 2-1/4"-2-3/4" (57-70mm) thick
ARMB180 3-1/8" (80mm) For doors 2-1/2"-3" (70-76mm) thick

Compatible With: 8372

ARMB255 2-1/8" (55mm) For doors 1-3/4"-2-1/4" (44-57mm) thick
ARMB270 2-3/4" (70mm) For doors 2-1/4"-2-3/4" (57-70mm) thick
ARMB280 3-1/8" (80mm) For doors 2-1/2"-3" (70-76mm) thick

Armature Plates

AP03 3/8" (9.5mm) Steel for 8371, 8372
AP03D 3/8" (9.5mm) Steel for 8371xDSS, 8372xDSS

Armature Plate Holders
Available in Brushed Anodized Aluminum (28) or Brushed Anodized Dark Bronze (40). Please specify when ordering.

AH71 8371 armature plate holder 28/40 for 8371
AH72 8372 armature plate holder 28/40 for 8372

Filler Bars
For frame stops narrower than 2" (51mm).
Available in Brushed Anodized Aluminum (28) or Brushed Anodized Dark Bronze (40). Please specify when ordering.

FB-710 1/4"H x 3/4"W x 9-3/8"L 28/40 for 8371
FB-711 3/8"H x 3/4"W x 9-3/8"L 28/40 for 8371
FB-712 1/2"H x 3/4"W x 9-3/8"L 28/40 for 8371
FB-713 5/8"H x 3/4"W x 9-3/8"L 28/40 for 8371
FB-720 1/4"H x 3/4"W x 18-3/4"L 28/40 for 8372
FB-721 3/8"H x 3/4"W x 18-3/4"L 28/40 for 8372
FB-722 1/2"H x 3/4"W x 18-3/4"L 28/40 for 8372
FB-723 5/8"H x 3/4"W x 18-3/4"L 28/40 for 8372

Glass Door Brackets
Required for glass doors without mounting rails.

GB7112 1/2" (13mm) 32 for 8371
GB7134 3/4" (19mm) 32 for 8371
GB7212 1/2" (13mm) 32 for 8372
GB7234 3/4" (19mm) 32 for 8372

Spacers
For aluminum blade stop frames. Used to lower the magnet to align with armature plate.
Available in Brushed Anodized Aluminum (28) or Brushed Anodized Dark Bronze (40). Please specify when ordering.

SP-710 1/4"H x 1"W x 9-3/8"L 28/40 for 8371
SP-711 3/8"H x 1"W x 9-3/8"L 28/40 for 8371
SP-712 1/2"H x 1"W x 9-3/8"L 28/40 for 8371
SP-713 5/8"H x 1"W x 9-3/8"L 28/40 for 8371
SP-720 1/4"H x 1"W x 18-3/4"L 28/40 for 8372
SP-721 3/8"H x 1"W x 18-3/4"L 28/40 for 8372
SP-722 1/2"H x 1"W x 18-3/4"L 28/40 for 8372
SP-723 5/8"H x 1"W x 18-3/4"L 28/40 for 8372

Top Jamb "Z" Bracket

Allows for horizontal adjustment of armature plate. Mounted on pull side of the door.
Available in Brushed Anodized Aluminum (28) or Brushed Anodized Dark Bronze (40). Please specify when ordering.
TJ71 8371 Z bracket kit 28/40 for 8371
TJ72 8372 Z bracket kit 28/40 for 8372
Hardware Pack
HK8371: Includes: Allen wrench, metal sleeve, armature bolt, sexnut, bolt, steel washers, rubber washers, flat head screws, pan head screws, plugs, TEK screws. (Buy 2 to make one 8372 Hardware kit)
