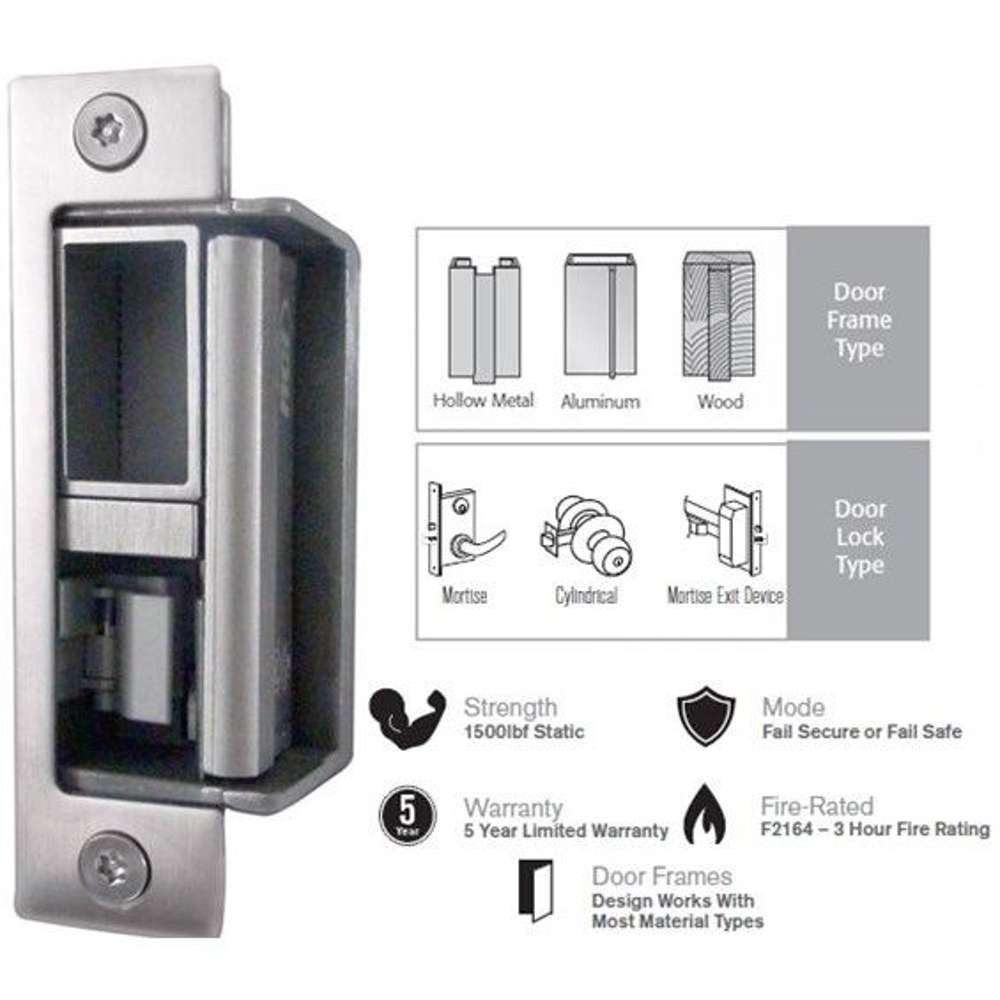

RCI 2364-32D Electric Strike
The 2 series are versatile, all-in-one, electric strikes that combine strength and convenience in a sleek design. The RCI F2164 & 2364 strikes feature an adjustable deadbolt keeper and deadlatch ramp allowing them to flexibly work with most locks. The "Saw-tooth Adjustment Locator" makes installation simple. It allows the installer to move the deadbolt keeper, or plug and deadlatch ramp vertically to align with a wide variety of mortise locks with offset latches. It also includes a trim plate to cover up an irregular frame cut-out. Everything you need for the strike is in the box, including a faceplate for centerline latch entry.
- Energy: 375mA Field-Selectable 12/24VDC, 12-24VAC (Max at 12VDC) (12-24VAC not available with 2364 model)
- Strength: 1,500lbf Static 70ft-lb Dynamic
- Endurance: 500,000 Cycles
- Mode: Fail-Secure & Fail-Safe
- Fire-Rated: Optional 3-Hour Model Available (Fire-rated (F) model only, 3-hour for single swing, 90-minutes for standard pair of doors)
- Latch Monitor: Plug-In Latch Monitor Accessory Available
Technical Details
- Faceplate: 1-1/4"W x 4-7/8"H (32mm x 124mm)
- Insert Depth: 1-3/4"D (45mm)
- Factory tested to over 2-million cycles of operation
- Brushed Stainless Steel (32D) finish
- UL 294 Listed for Access Control Unit Accessory (6th Edition)
- UL 1034 burglary-resistant Listed
- UL 10C, 3-hour fire-rating Listed3
- CAN/ULC S104, 3-hour fire-rating Listed3
- California State Fire Marshal Listed (CSFM: 3776-2275:0502) (Fire-rated (F) model only, 3-hour for single swing, 90-minutes for standard pair of doors)
- Certified to ANSI/BHMA standard A156.31, Grade 1, endurance 500,000 cycles
- Patent #: US 9,580,935
- Patent #: Cdn 2,850,072
- 3For fire-rated models
Accessories
F2LM - Latch monitor plug-in kit (2A @ 24VDC)
2FP - Filler plate (for use when replacing discontinued 2 Series models)
F2-19 - Centerline faceplate, 1-3/8"W x 9"H (35mm x 229mm), 32D finish
F2-29 - Offset faceplate, 1-3/8"W x 9"H (35mm x 229mm), 32D finish
940-LG High profile latch guard 32D
Applications
- Commercial Centers
- Industrial Buildings
- Educational Facilities
- Retail Outlets
- Health Care Facilities
- Office Complexes
