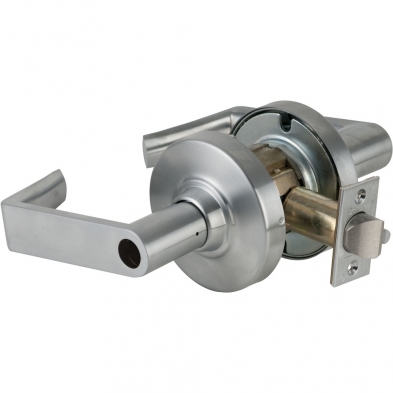

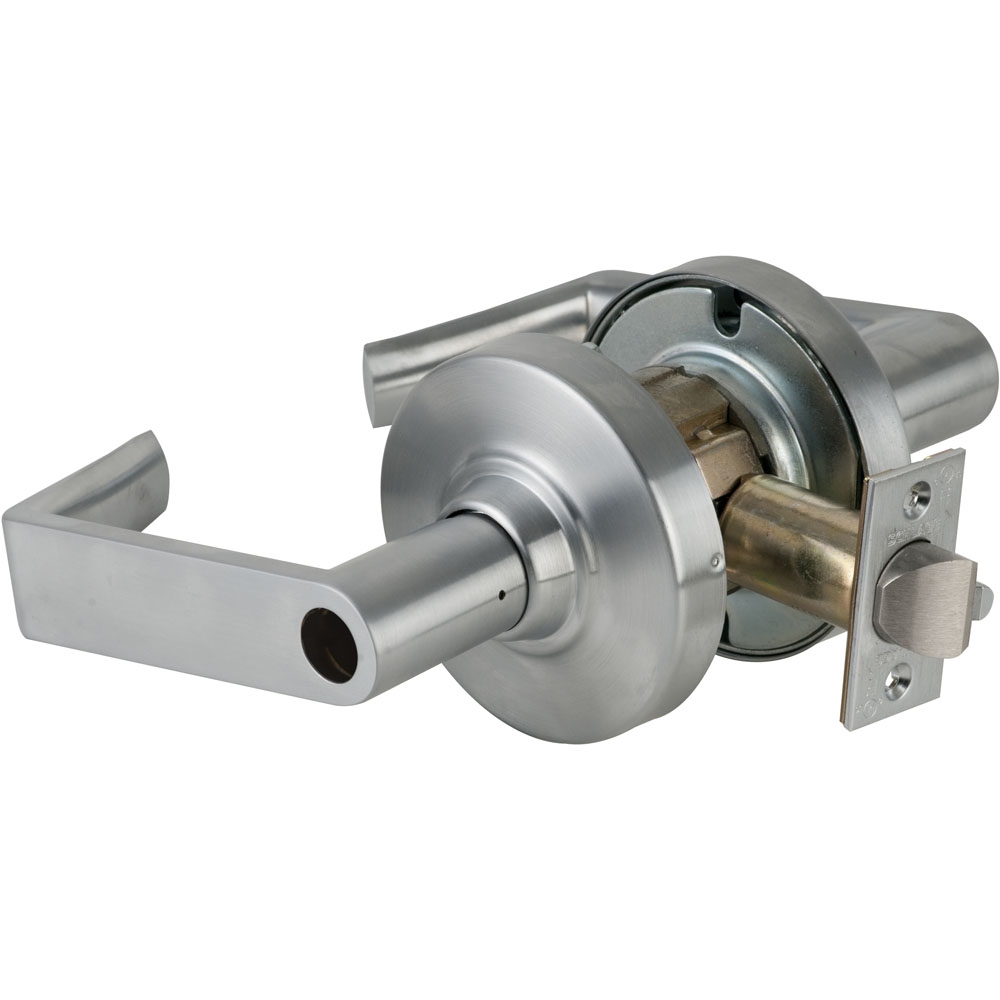

Schlage ND95CD-RHO-626 Grade 1, Cylindrical Lock

SKU # SC/ND95CD-RHO-626

Schlage ND95CD-RHO-626 Grade 1, Cylindrical Lock

The Schlage ND95 Grade 1, Cylindrical Lock is a Rhodes Style Lever, Grade 1, FSIC, less core, Cylindrical Lock for the ND Series.  Performance beyond Grade 1 - The Schlage® ND family significantly exceeds BHMA Grade 1 requirements for cycle, lever torque, hammer blow, lever pull and other tests. This means confidence that the lock will last—whether the application calls for high abuse resistance or just operation over millions of cycles— without any degradation in performance.  Vandlgard™ trim is specifically designed for highly abusive environments. The outside lever rotates freely up and down when locked, limiting the ability of vandals to apply excessive force to the chassis

Features include:

  • Rhodes Lever
  • FSIC, less core
  • Classroom security lock - Key in either lever locks or unlocks outside lever. Vandlgard allows outside spindle to disengage from latch when locked. Inside lever always free for immediate egress.
  • ND Series mechanical lock - Vandlgard™ function
  • Satin Chrome Finis
US$590.22
Comments or instructions

Description:

Description:

Schlage ND95CD-RHO-626 Grade 1, Cylindrical Lock

The Schlage ND cylindrical lock uses a motor instead of a solenoid to provide quiet operation and energy efficiency. The maximum current draw of 0.23 amps allows more locks to run off a single power supply. A low, 0.010 amp holding current eliminates any potential for hot levers in electrically locking applications or in electrically unlocking applications where the door is left open for long periods of time. ND Series can be quickly and easily installed and is compatible with various key systems for field adaptability. It suites seamlessly with the other ND Series hardware which includes both purely mechanical and fully electronic solutions. When it comes to access control, mechanical components are just as important as their electronic counterparts. The Schlage ND Series provides versatility and easy installation to complete your access control system.

Exceeds ANSI A156.2 series 4000 Grade 1 torque requirements
• Universal input voltage – accepts 12V or 24V DC for installation flexibility
• Change operation mode between Electrically Unlocking (EU or Fail Secure) and Electrically Locking (EL or Fail Safe) by simply flipping a switch on the chassis
• Low maximum current draw allows multiple locks on a single power supply
• Low holding current produces minimal heat, eliminating "hot levers" in electrically locking applications
• Request-to-exit functionality can be easily upgraded in the field with the following kit part #: N123-062
• Extensive options for lever styles, finishes and functions • UL listed for 3-hour fire door
• Available with Vandlgard® lever engagement on storeroom function
- ideal for areas subject to abuse or vandalism

Specifications:
